Gaggia MDF Part Diagram ER0018

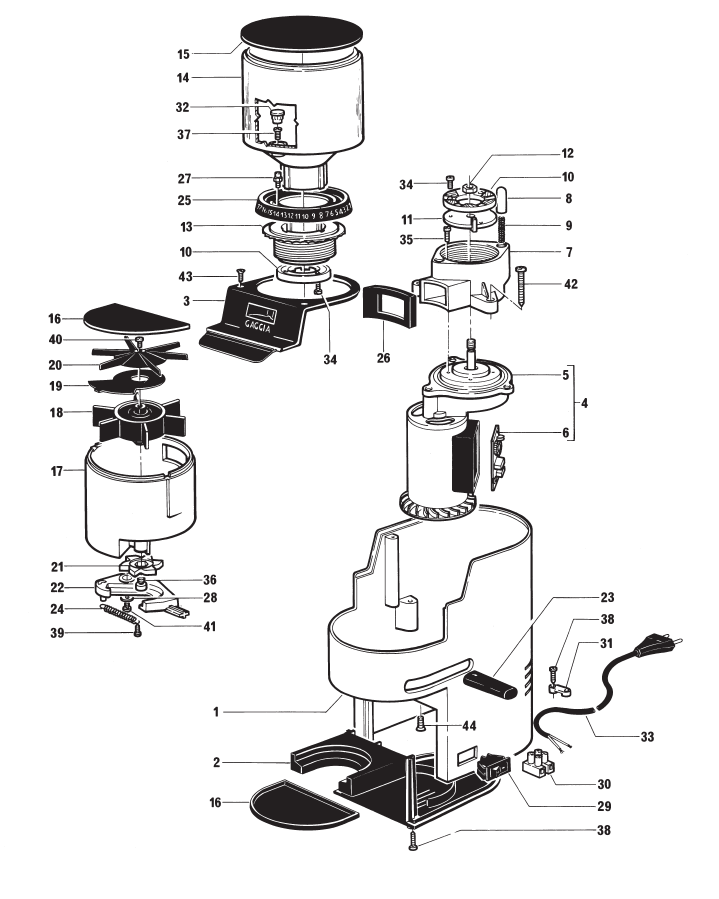

This is the Gaggia MDF Part Diagram ER0018. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| ER0018-1 | 01 | WHITE BODYWORK
Part Number: MDF0071/BI |
|||
| ER0018-1 | 01 | RED BODYWORK
Part Number: MDF0071/RO |
|||
| ER0018-1 | 01 |
|
BODY BLACK PAINTED Part Number: MDF0071/VNE |
$32.76 | View Part |
| ER0018-1 | 02 |
|
BASEMENT Part Number: MDF0070 |
$18.70 | View Part |
| ER0018-1 | 03 | UPPER PANEL Part Number: MDF0067 |
$8.88 | View Part | |
| ER0018-1 | 04 | MOTOR ASSEMBLY V 220-240/50-60
Part Number: MDF0077/A220240 |
|||
| ER0018-1 | 04 | MOTOR ASSEMBLY V.120/60
Part Number: MDF0077/A/120 |
|||
| ER0018-1 | 05 | MOTOR V 220-240/50-60 HZ
Part Number: MDF0063/A220240 |
|||
| ER0018-1 | 05 | MOTOREDUCER V.120/60
Part Number: MDF0063/A/120 |
|||
| ER0018-1 | 06 | RECTIFIER AND FILTER ASSEMBLY
Part Number: MDF0081/01 |
|||
| ER0018-1 | 06 | RECTIFIER V120
Part Number: MDF0089 |
|||
| ER0018-1 | 07 | MOTOR SUPPORT ASSEMBLY
Part Number: MDF0039/A |
|||
| ER0018-1 | 08 |
|
GUDGEON Part Number: MDF0030 |
$5.62 | View Part |
| ER0018-1 | 09 | SPRING
Part Number: MDF0033 |
|||
| ER0018-1 | 10 | GRINDING PLATE 50 M.M. Part Number: MDF0029 |
$22.90 | View Part | |
| ER0018-1 | 11 | LOWER GRINDER HOLDING PLATE Part Number: MDF0004/01 |
$20.14 | View Part | |
| ER0018-1 | 12 | 8 BRASS NUT - LEFT HAND
Part Number: UN5587-8O/S |
|||
| ER0018-1 | 13 |
|
GRINDER HOLDING PLATE Part Number: MDF0065 |
$22.35 | View Part |
| ER0018-1 | 14 | COFFEE CONTAINER
Part Number: MDF0046/A |
|||
| ER0018-1 | 15 |
|
LID FOR COFFEE CONTAINER Part Number: MDF0020 |
$6.30 | View Part |
| ER0018-1 | 16 | LOWER LID
Part Number: MDF0054 |
|||
| ER0018-1 | 17 | DOSER BODY
Part Number: MDF0066 |
|||
| ER0018-1 | 18 | DOSING METER ASSEMBLY
Part Number: MDF0074/A |
|||
| ER0018-1 | 19 | LEVEL PLATE
Part Number: MDF0048 |
|||
| ER0018-1 | 20 | UPPER LEVEL BODY
Part Number: MDF0057 |
|||
| ER0018-1 | 21 | CAM
Part Number: MDF0058 |
|||
| ER0018-1 | 22 | OPERATING LEVER
Part Number: MDF0060 |
|||
| ER0018-1 | 23 | HAND GRIP
Part Number: MDF0051 |
|||
| ER0018-1 | 24 | LEVER SPRING
Part Number: MDF0008 |
|||
| ER0018-1 | 25 | ADJUSTEMENT RING
Part Number: MDF0068 |
|||
| ER0018-1 | 26 | GASKET
Part Number: MDF0055 |
|||
| ER0018-1 | 27 | FIXING SUPPORT
Part Number: MDF0052 |
|||
| ER0018-1 | 28 | LEVER HOLDING RING
Part Number: MDF0049 |
|||
| ER0018-1 | 29 | MAIN SWITCH
Part Number: DM1415 |
|||
| ER0018-1 | 30 | TWO-POLE TERMINAL BLOCK
Part Number: DM0758/002 |
|||
| ER0018-1 | 31 | CORD CLAMP
Part Number: FG0237 |
|||
| ER0018-1 | 32 | FOOT
Part Number: WGAFG0245 |
|||
| ER0018-1 | 33 | POWER CORD 2X0,75 ITALIAN PLUG
Part Number: MDF0090/IXX |
|||
| ER0018-1 | 33 | UK 2X0.75 POWER CABLE
Part Number: MDF0090/GBX |
|||
| ER0018-1 | 33 | POWER CORD - AUSTRALIAN PLUG
Part Number: ML0316/AUS |
|||
| ER0018-1 | 33 | POWER CORD - USA PLUG
Part Number: ML0316/USA |
|||
| ER0018-1 | 34 | 4X8 BURN. SCREW
Part Number: UN6107-4X8B |
|||
| ER0018-1 | 35 | 4X16 BURN. SCREW
Part Number: UN5931-4X16B |
|||
| ER0018-1 | 36 | 6X10 GALV. SCREW
Part Number: WGAUN5931-6X10Z |
|||
| ER0018-1 | 37 | 3X8 GALV. SCREW
Part Number: WGADI7986-3X8Z |
|||
| ER0018-1 | 38 | 2,9X16 GALVAN. SCREWPLAST
Part Number: DI7981P2.9X16Z |
|||
| ER0018-1 | 39 | 2,9X6,5 SELF TAPPING SCREWPLAS
Part Number: DI7981P2.9X6.5Z |
|||
| ER0018-1 | 40 | 3,5X16 S.S. SELF TAPPING SCREW
Part Number: DI7981P3.5X16I |
|||
| ER0018-1 | 41 | SELF TAPPING GALV. SCREWPLAST
Part Number: DI7981P3.5X9.5Z |
|||
| ER0018-1 | 42 | SELF TAPPING GALV.SCREWPLAST 5
Part Number: DI7981P5.5X40Z |
|||
| ER0018-1 | 43 | 3,5X13 SELF TAPPING SCREWPLAST
Part Number: DI7982P3.5X13B |
|||
| ER0018-1 | 45 | GAGGIA CONTROL LAMP V.220/24
Part Number: DM1169/220 |
|||
| ER0018-1 | 45 | GAGGIA CONTROL LAMP V.110-120
Part Number: DM1169/120 |
