Rebuilt Machine Overview

Our rebuilt machines were entirely dismantled, cleaned and extensively rebuilt. The whole boiler assembly and all of the copper tubing was removed and thoroughly descaled. We then rebuilt the boiler, brew group, pump assembly and valves, cleaning, replacing and lubricating parts as necessary. Our entire process is described in detail below.

Total Tear Down and Rebuild Process:

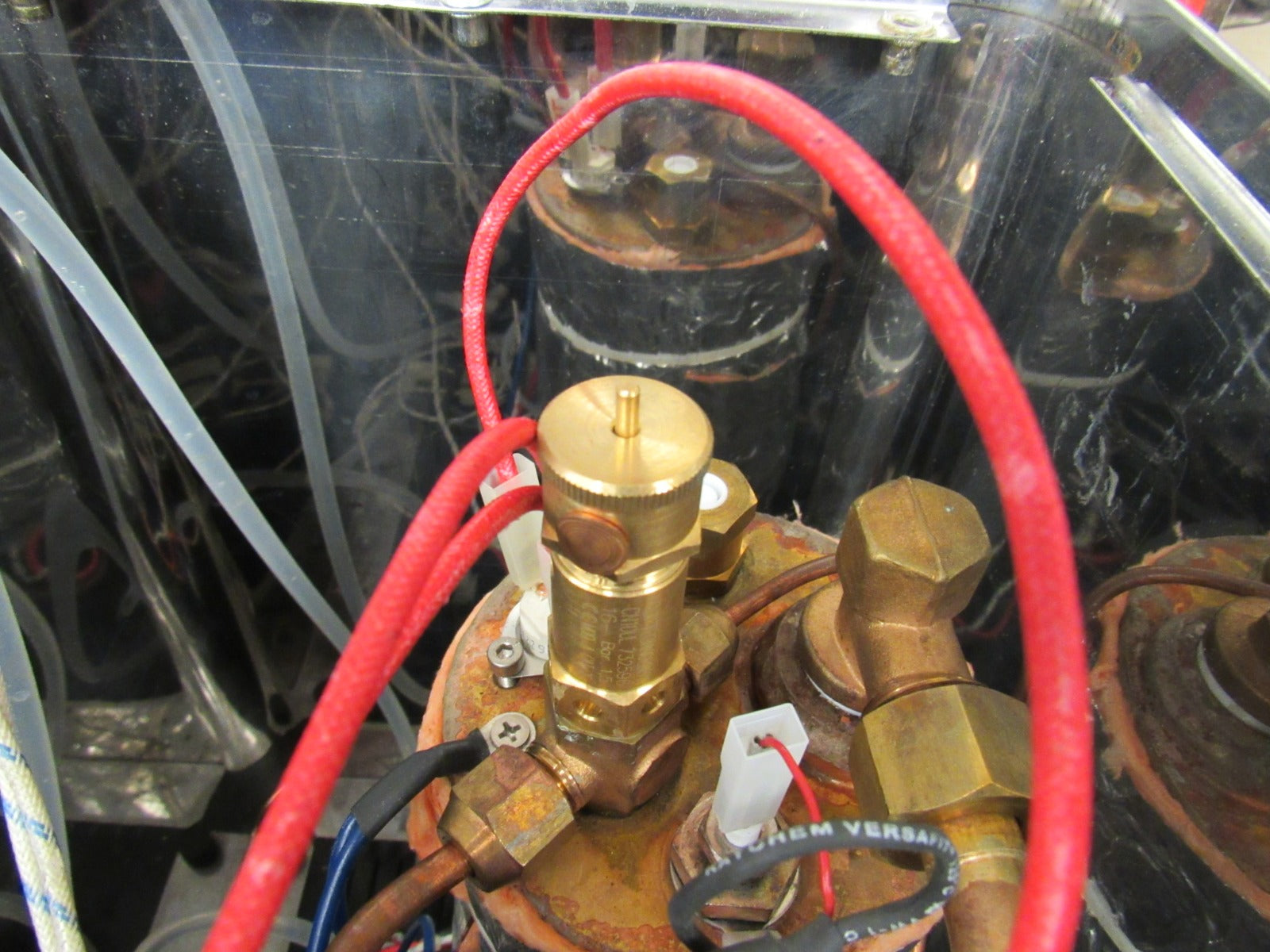

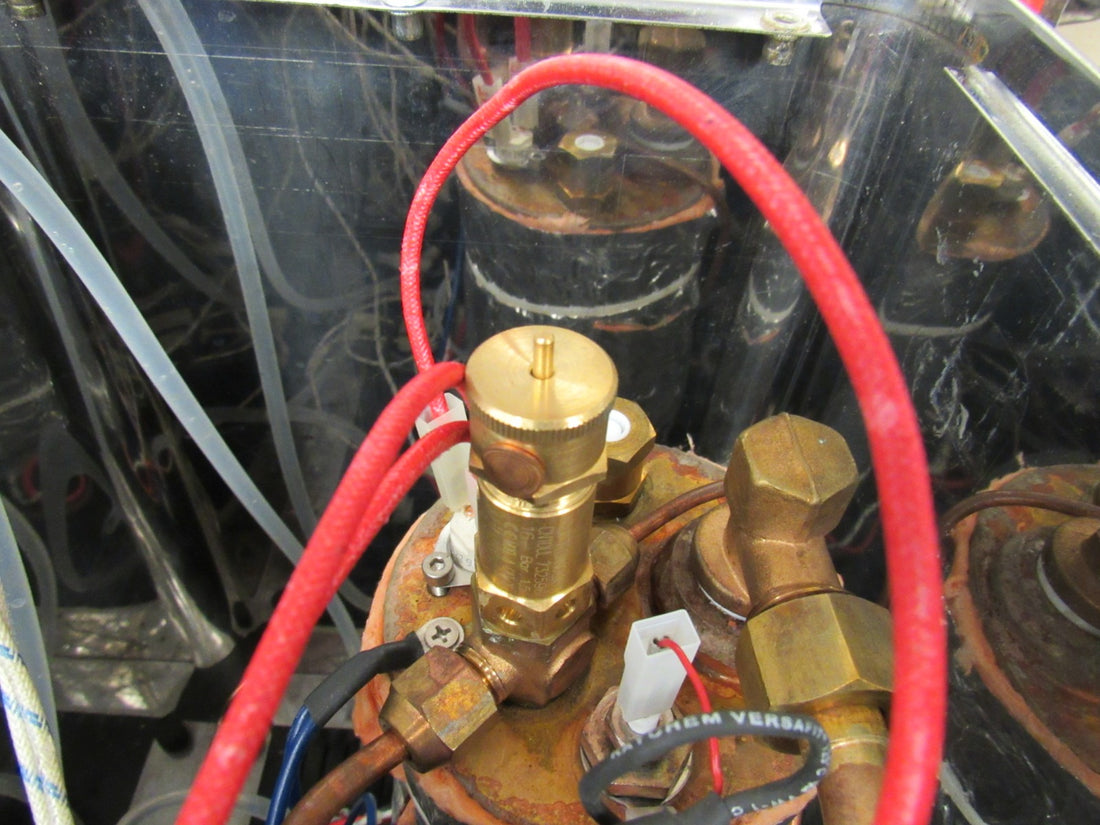

  • Boiler & Piping Assembly: first we installed all NEW parts including a heating element, pressurestat, safety valve, vacuum relief valve, high limit switch, and boiler insulation.
  • Brew group: we then did a complete tear down, cleaning and lubrication of the brew group and installed all NEW brewing, infusion and discharge valves along with their seals, the upper and lower infusion valve springs, the shower screen, and group gasket.
  • Pump Assembly: the rebuilds all feature an all NEW pump, OPV & air remover, and style fitting with heavy duty teflon tubing.

Testing Phase:

  • When the machines were reassembled, we adjusted the steam pressure to 1 bar; and, with the backflush disc in, we set the brew pressure to 10 bars.
  • Post-reassembly, we thoroughly tested the machine’s steaming, brewing and pre-infusion performance, and made sure the sound level it produced was no louder than on a new machine.

When you Buy:

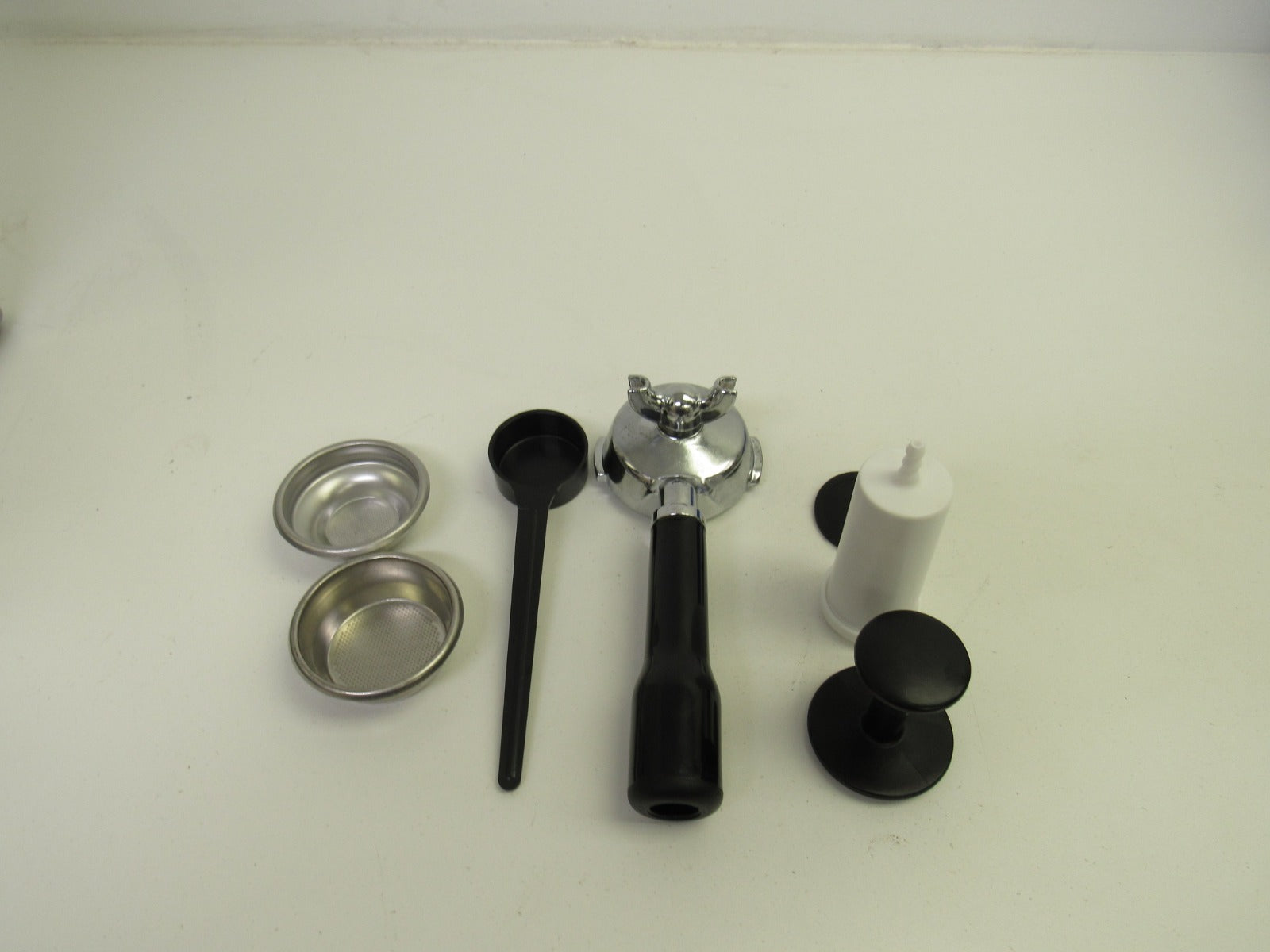

The rebuilt machines include the following accessories: a portafilter, single and double filter baskets, a backflush disc, tamper, coffee scoop, and a large particle filter.

Warranty:

Our rebuilt espresso machines are covered by a 1-year parts and labor warranty.

Machine Overview

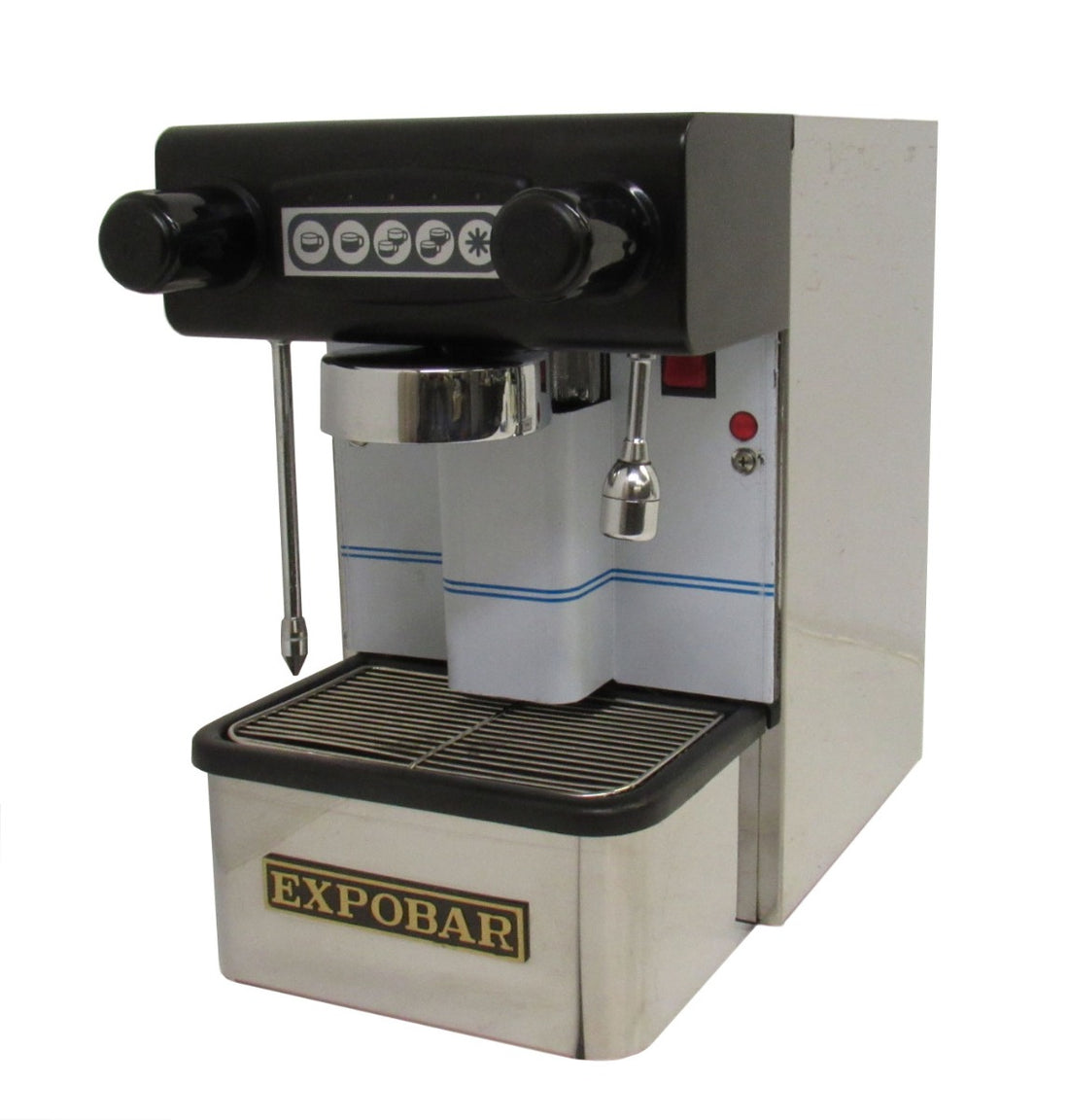

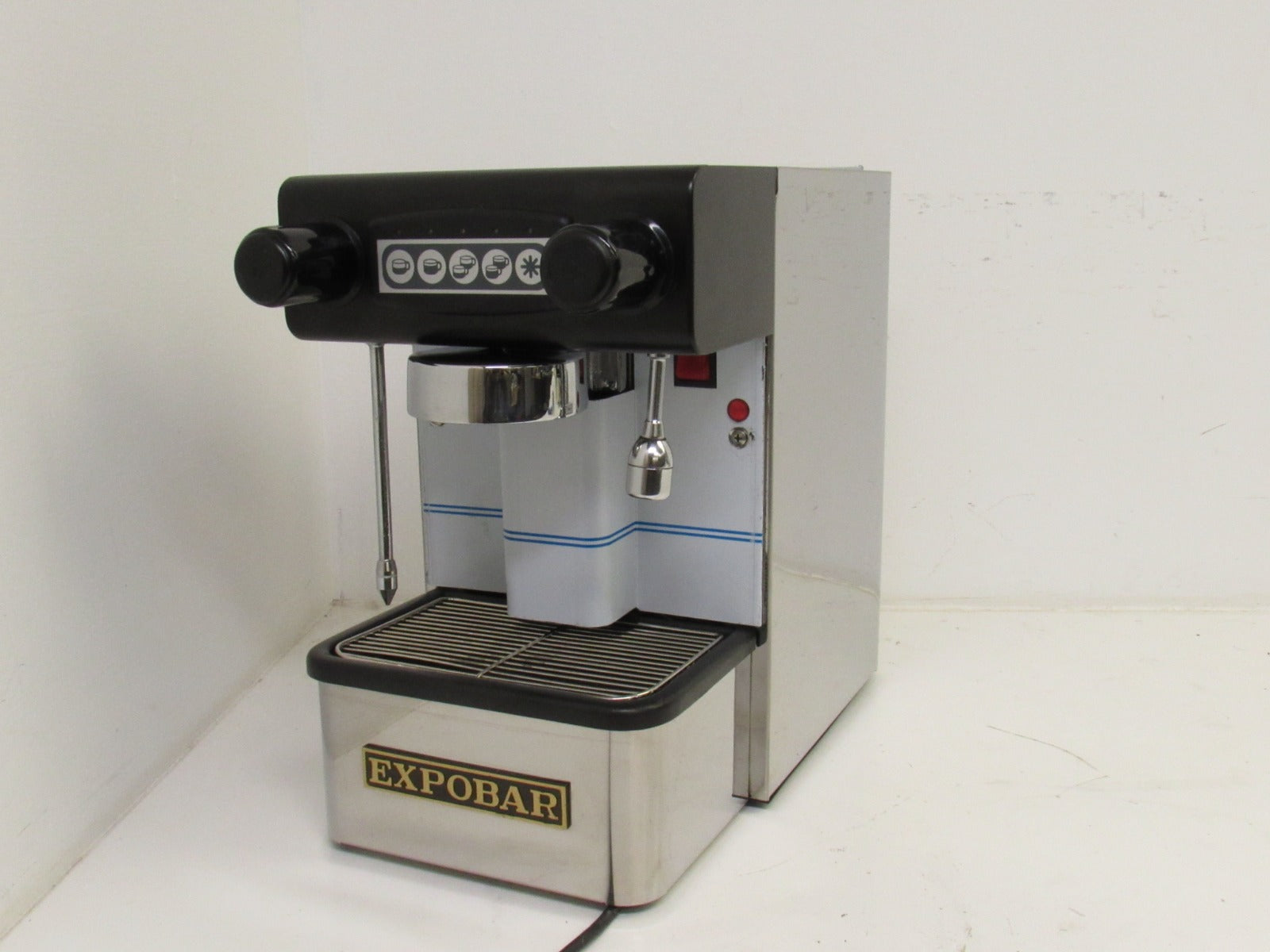

The Rebuilt Expobar Office Control commercial espresso machine is truly in a league of its own. It is a fully automatic espresso machine that has four programmable buttons for dispensing any amount of water through your coffee with the push of a button. The commercial style boiler is made of copper and has all the controls that are found on the larger commercial machines. It can simultaneously brew and steam, allowing for extensive flexibility. This machine is sensational for those who love to entertain, or even just for the executive who does not want to visit the drip coffee machine down the hall. It has both a steam wand and hot water dispensing wand that are mounted on ball joints so that they can swing in any direction. Its size makes it convenient for those who don’t want to give up a large amount of counter space. It is 15.5” tall, 9.5” wide and 16.5” deep. The group head is comparable to the renowned E61 group head with pre-infusion and thermal siphon for maximum temperature stability and aroma extraction. The stainless steel housing is as beautiful as it is durable. The accessories include a chrome plated brass portafilter, tamper, single shot filter basket, double shot filter basket and a 7 gram coffee scoop.

Please Note: Regulations for commercial use vary between states. Be aware of your local requirements. Machines carrying an NSF approval are labeled as such.

Features & Benefits: Coffee

Commercial Size and Style Portafilter Handle

Made of chrome-plated brass for excellent heat stability which is essential for producing top quality espresso.

Commercial Brewing Group

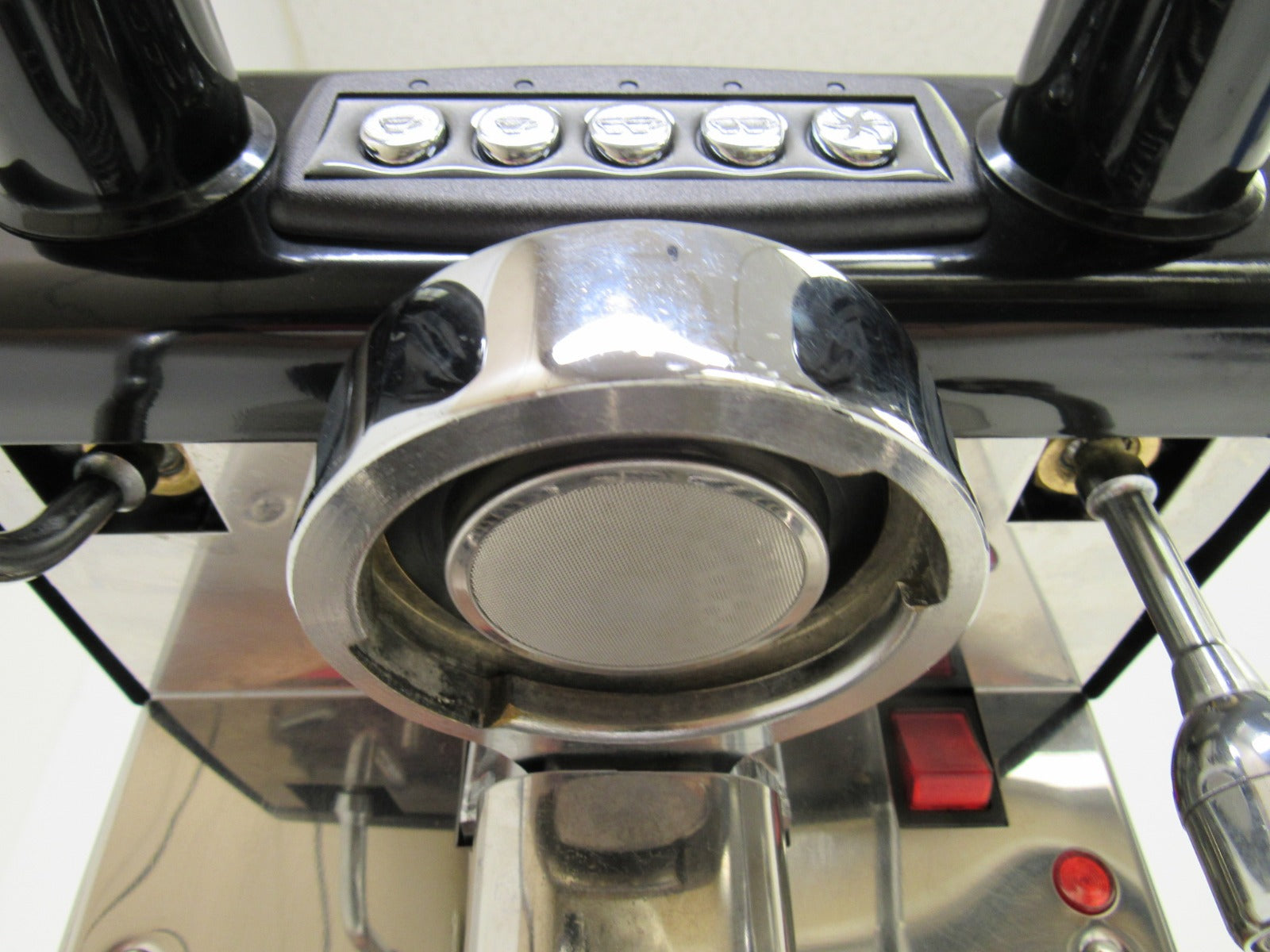

The brew group is the large piece of chrome-plated brass that the portafilter inserts into. The Expobar brew group has a thermal siphon that is constantly circulating water through it to keep it hot at all times. It is never necessary to run a blank shot to preheat it.

Commercial Design Heat Exchanger Boiler System

The all copper boiler has a capacity of 1.8 liters. It has an internal heat exchanger that prevents the water used for brewing from coming in contact with the water stored in the boiler for steaming or hot water dispensing. With its commercial style design you can brew and steam or dispense hot water whenever you want to. This is especially important when entertaining or when used in a commercial application.

3-Way Solenoid Valve

The 3-way solenoid valve is a commercial feature that relieves the water pressure off the coffee when the brew switch is turned off. This serves two functions; it dries out the coffee to prevent dripping and makes it easy to knock the coffee out of the portafilter with one knock. It deposits this water into the drip tray.

High Quality Controls with Temperature Ready Light

The easily programmable controls are a breeze for anyone to operate. There are four buttons that, when programmed, will measure the amount of coffee going into your cup and shut off by itself. This allows you to focus in on creating the perfect froth while the machine takes care of the espresso. There is also a main power switch and ready light that lets you know when the machine has achieved the proper pressure for operation.

Programmable Buttons

The Expobar Office Control has a 5-button touch pad for activating the pump and programming your favorite drinks. Four of the buttons are available to program to automatically dispense the desired volume of water.

Cup Warmer

We always preheat cups when brewing espresso. A non-preheated cup will immediately suck the heat out of the espresso thus robbing you of maximum enjoyment. The cup warmer on the Expobar will hold up to 14 espresso cups. It is a passive type heater, which means it is heated from the residual heat of the boiler.

Features & Benefits: Frothing and Hot Water

Hot Water Dispenser

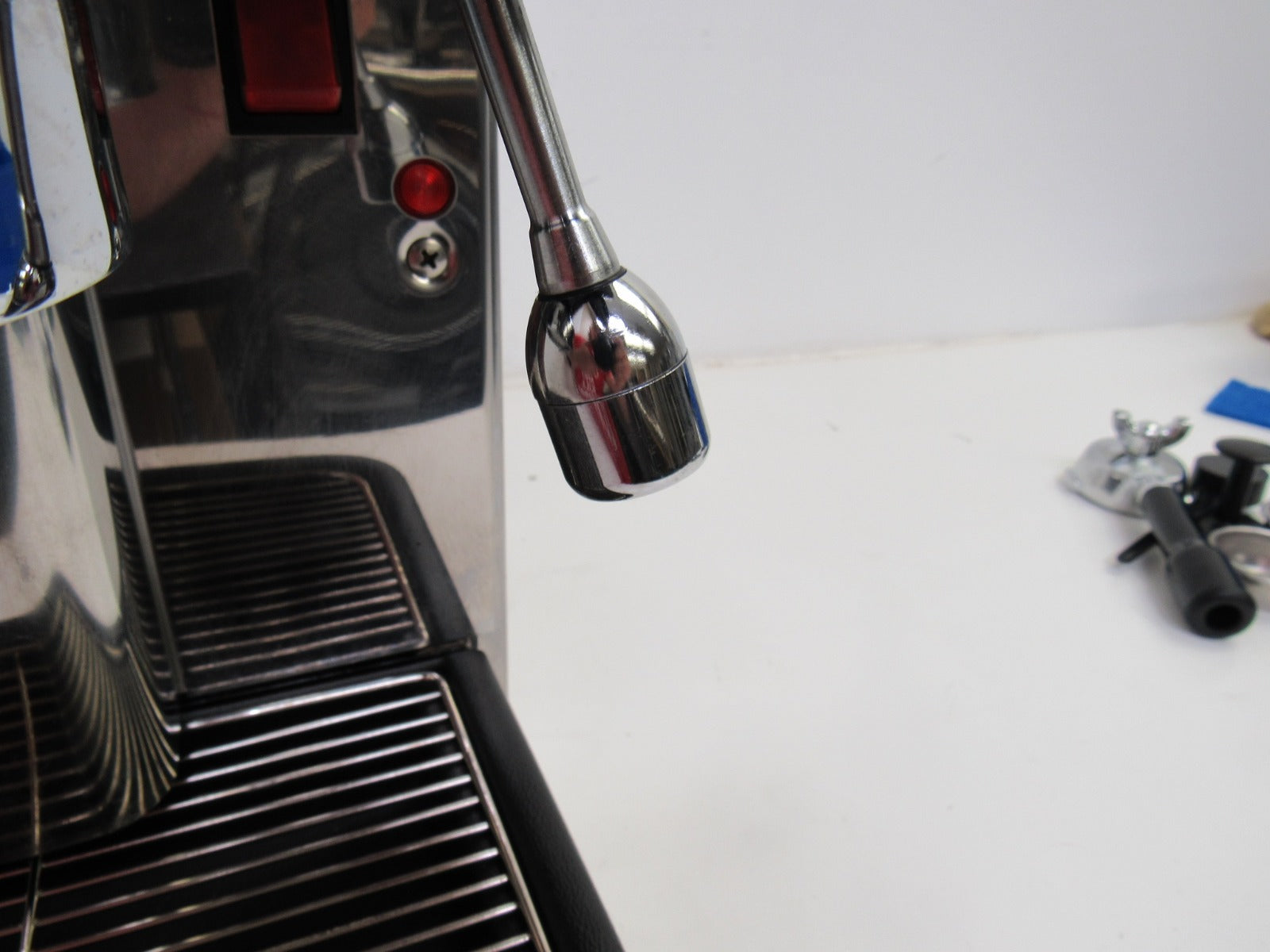

A hot water dispenser is excellent for preheating cups or supplying hot water for tea. The knob on the right side controls the flow of water through the hot water dispensing wand. Just like on the large commercial machines the wand is mounted on a ball joint and can pivot in any direction.

Steam Wand

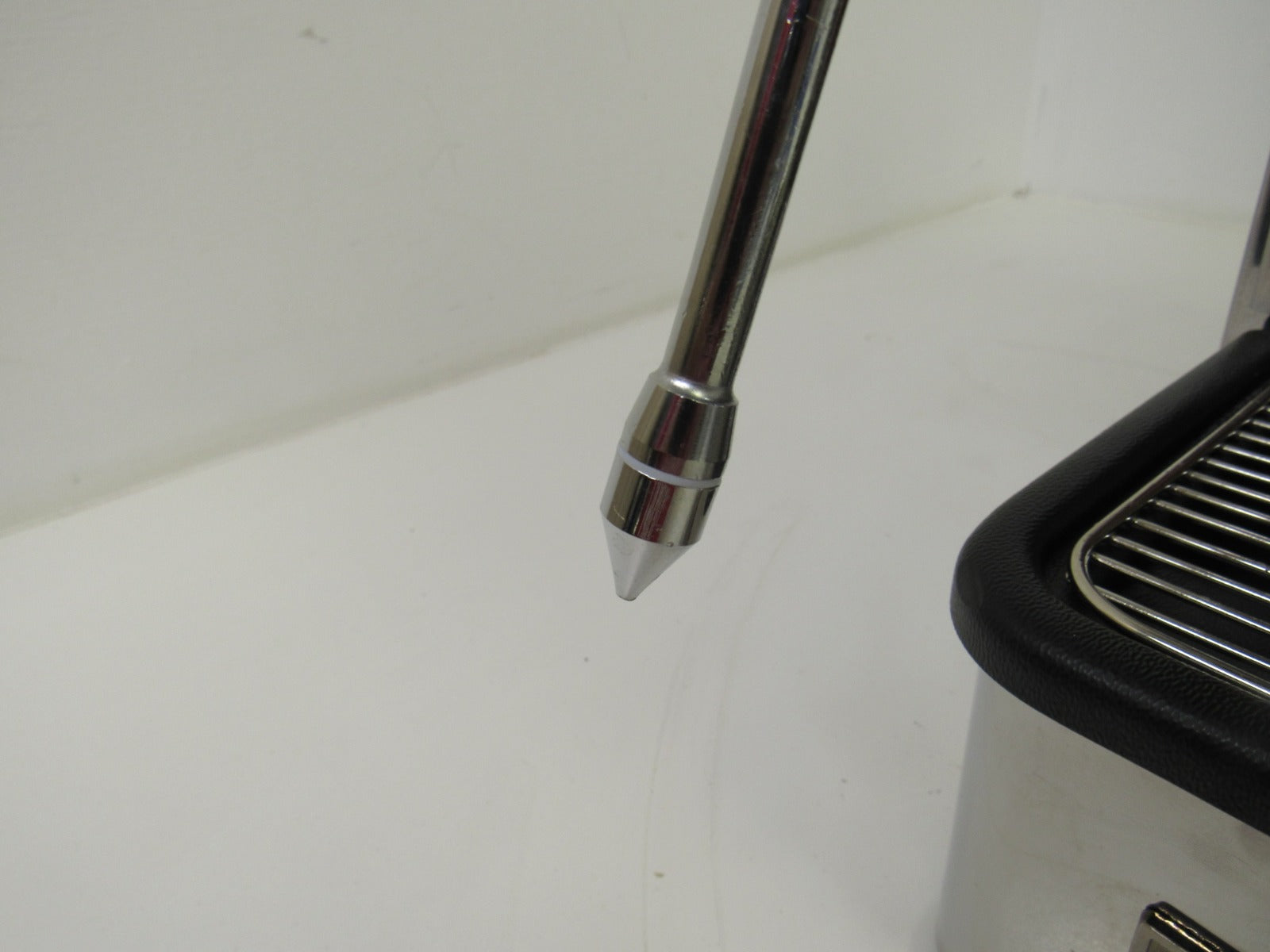

The steam wand is long and is high enough off the counter to easily fit any frothing pitcher without having to tip it. It is mounted on a ball joint that can swing in any direction.

Features & Benefits: Care, Maintenance & Other

Water Reservoir

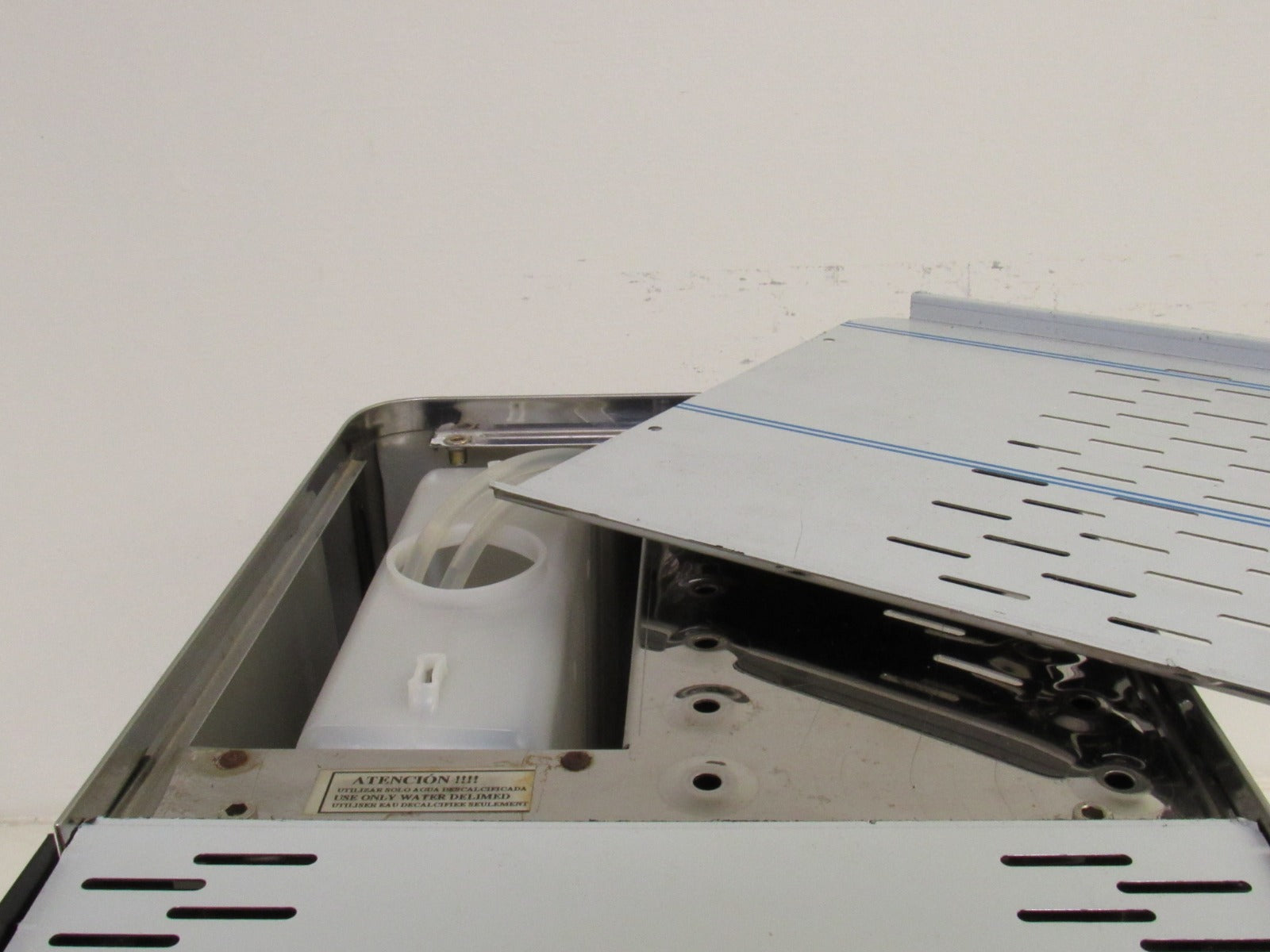

A 2.75-liter reservoir is easily removable for cleaning or filling at the sink.

Multiple Safety Switches and Controls

If the water level in the boiler gets low the electronic controls sense this and turn the pump on to automatically fill the boiler. If the reservoir runs out of water a CPU board will turn off the heating element to prevent overheating. A manual reset high temperature switch is located on top of the boiler as a secondary safety switch.

Boiler Pressure Control

The boiler temperature/pressure is controlled through a professional grade pressure controller. It senses the pressure in the boiler and turns on the heating element in the boiler as the pressure drops.

Maintenance

Back flush the Expobar at least every few days. For commercial application you should back flush it at the end of every day. It is a simple process that takes only a few minutes. Put a blank filter basket into the portafilter (supplied) and add a tablespoon of cleaner. Install the portafilter into the machine and turn on the pump. The pump will be noisy as it starts and will start to quiet down as the pressure builds. When the pump has quieted down, turn off the brew switch and the cleaner will be blown up into the brew group, through the 3-way solenoid valve and down into the drip pan. Do this until the cleaner that is being directed into the drip pan is just free of coffee colors. Finish the process by rinsing out the brew group.

Housing Construction

The steel frame compliments the highly polished stainless steel housing and cup warmer. The drip grate is stainless steel. The plastic drip pan holds up to 32 ounces of liquid.

Specifications

Property Value
SKU EXCONTROL-RB
Boiler Configuration Heat-Exchanger Preheated
Number of Boilers 1
Boiler Features Rapid Steam,Brew & Steam Simultaneously
Brew Boiler Heater Location Internal
Brew Boiler Material Copper
Brew Boiler Orientation Vertical
Brew Boiler Type Heat Exchanger
Brew Boiler Volume (Oz) 57
Three-Way Valve Automatic
Brew Group Material Chrome Plated Brass
Capsule or Pod Friendly Pod Kit Available
Brew Group Size (mm) 58 mm
Brew Group Type E61
Brew Boiler Wattage 1250
Recommended Application Home / Residential,Commercial
Controls and Additional Features Cup Volume Control,Low-Water Warning,Pre-Infusion,Programmable Brewing,Steam Control
Pressure Gauges Brew Circuit
Type of Controls Push Button
Cup Height (max, inches) 3.25
Cup Warmer Material Stainless Steel
Cup Warmer Size (L-in x W-in) 10x8
Cup Warmer Passively Heated
Drip Tray Capacity (oz) 20
Drip Tray Cover Material Stainless Steel
Drip Tray Material Plastic
Portafilter Baskets Included Single,Double
Frame Material Stainless Steel
Housing Color Stainless Steel
Housing Material Stainless Steel
Recommended Water Filter No Filter Required
Rechargeable Water Softener Yes
Depth (Inches) 16.5
Height (Inches) 15.25
Weight (Lbs) 36
Width (Inches) 9.5
Hot Water Temperature (8oz, Deg. F) 195
Hot Water Time (8oz, Seconds) 13
Time to Steam 8oz of Milk (Seconds) 63
Sound Level while Brewing (dB) 59
Time to Heat (Minimum Seconds) 420
Time to Heat (Recommended Seconds) 900
Filter Diameter (mm) 58
Portafilter Material Chrome Plated Brass
Number of Portafilters Included 1
Ground, E.S.E., Pod and Capsule Compatibility Ground Coffee
Portafilter Type Commercial Style
Portafilter Weight (lbs) 1
Adjustable Brew Pressure Yes
Pump Pressure (Max. Bar) 15
Pump Type Vibration Pump
Pump Wattage 41
Warranty Service Provider Email Support@Wholelattelove.com
Warranty Service Provider Whole Latte Love
Warranty Service Provider Phone Number 888-411-5282
Manufacturers Warranty Period 1-Year Limited Warranty
Volt 110V-120V (US)
Watts 1428
Power Cord Length (inches) 40
Steam Boiler Type Single Boiler Dual-Use
Steam Wand Cup Clearance 6.75
Steam Wand Features Swappable Steam Tips
Steam Tip Hole Count 1
Steam Wand Material Stainless Steel
Steam Wand Movement Type Fully Articulated
Steam Wand Commercial Style
Steam Wand Usable Length 5.75
Water Reservoir Access Location Top
Water Reservoir Capacity 93
Water Reservoir Features Removable
Water Reservoir Material Plastic
Water Source Built-In Reservoir
