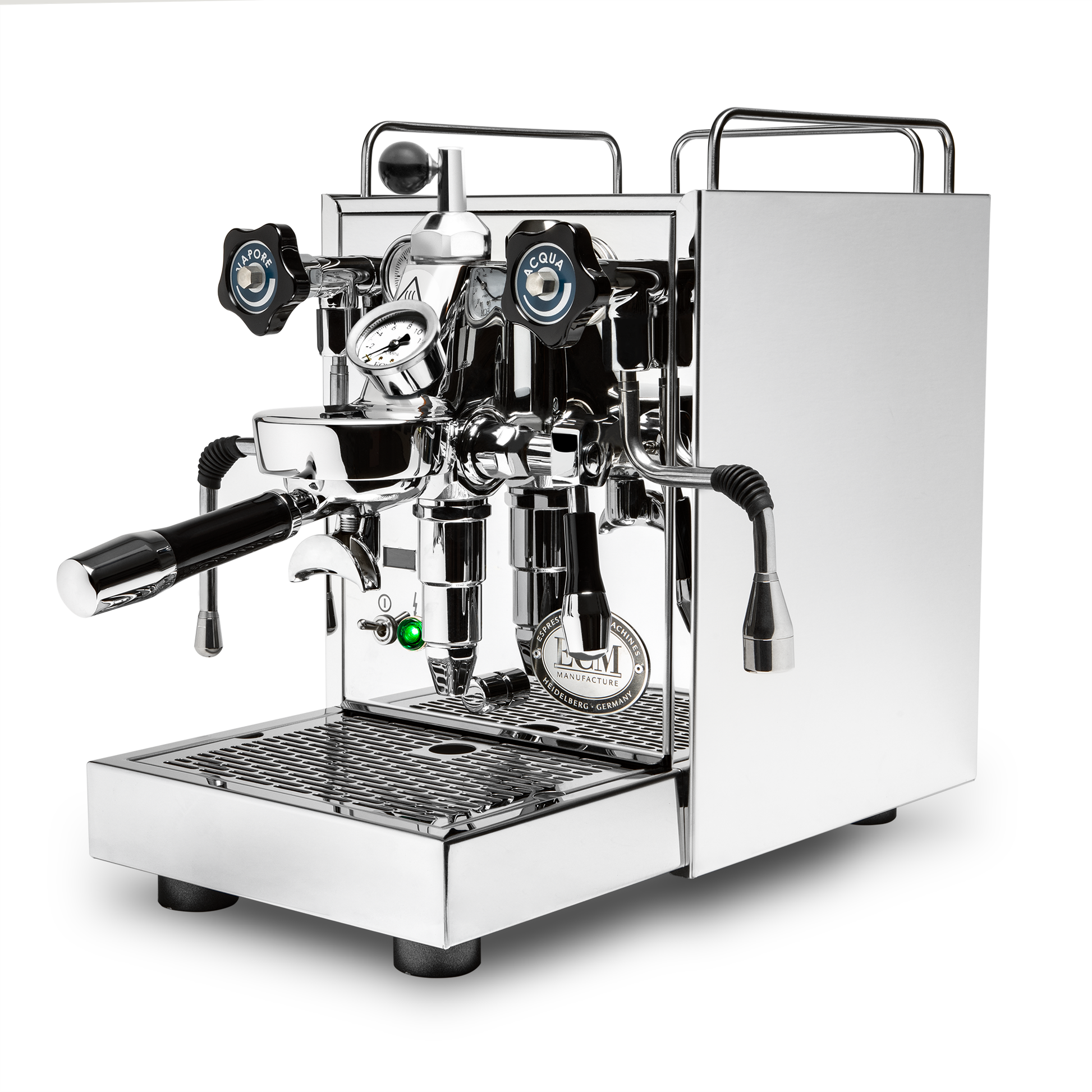

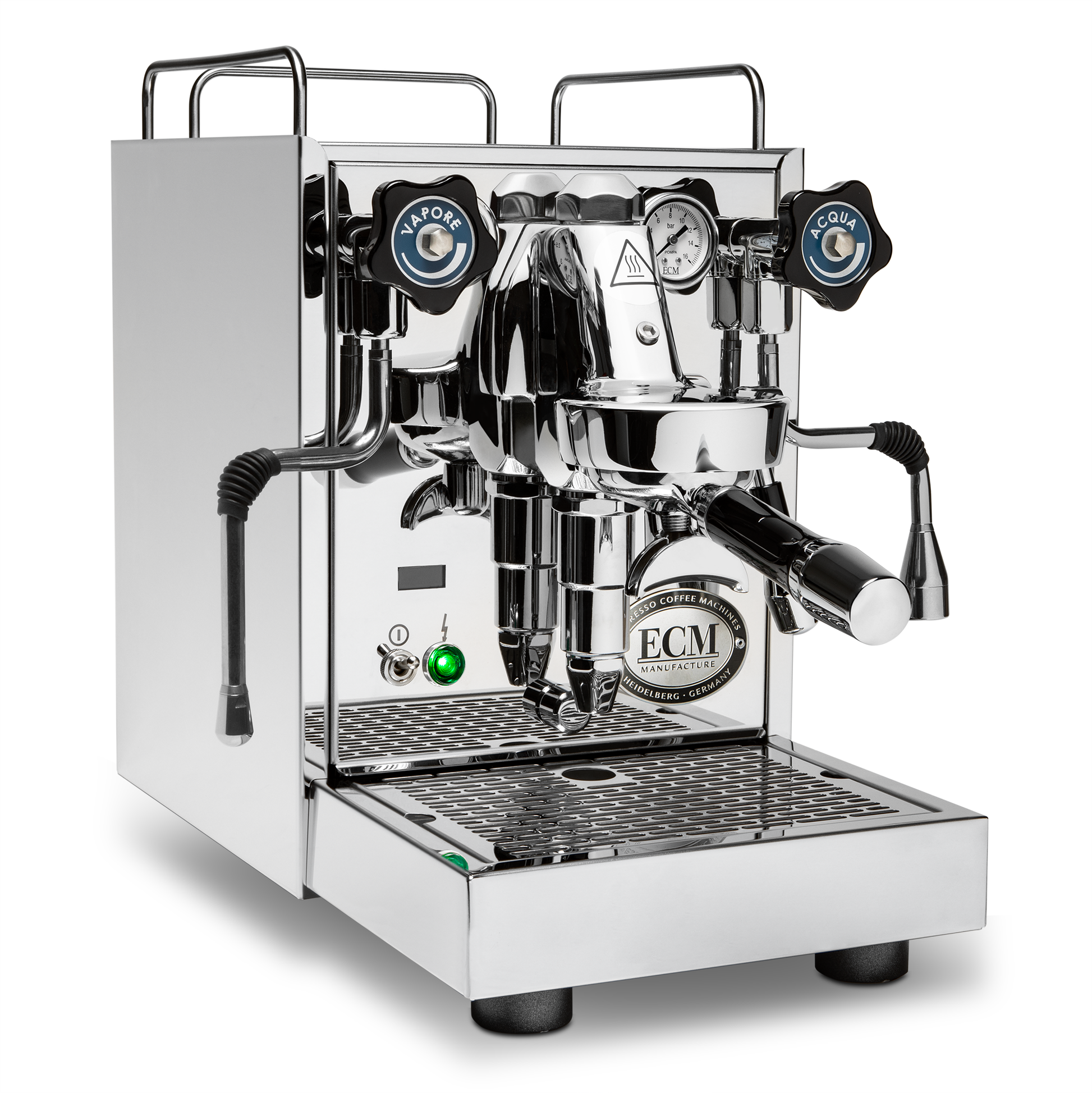

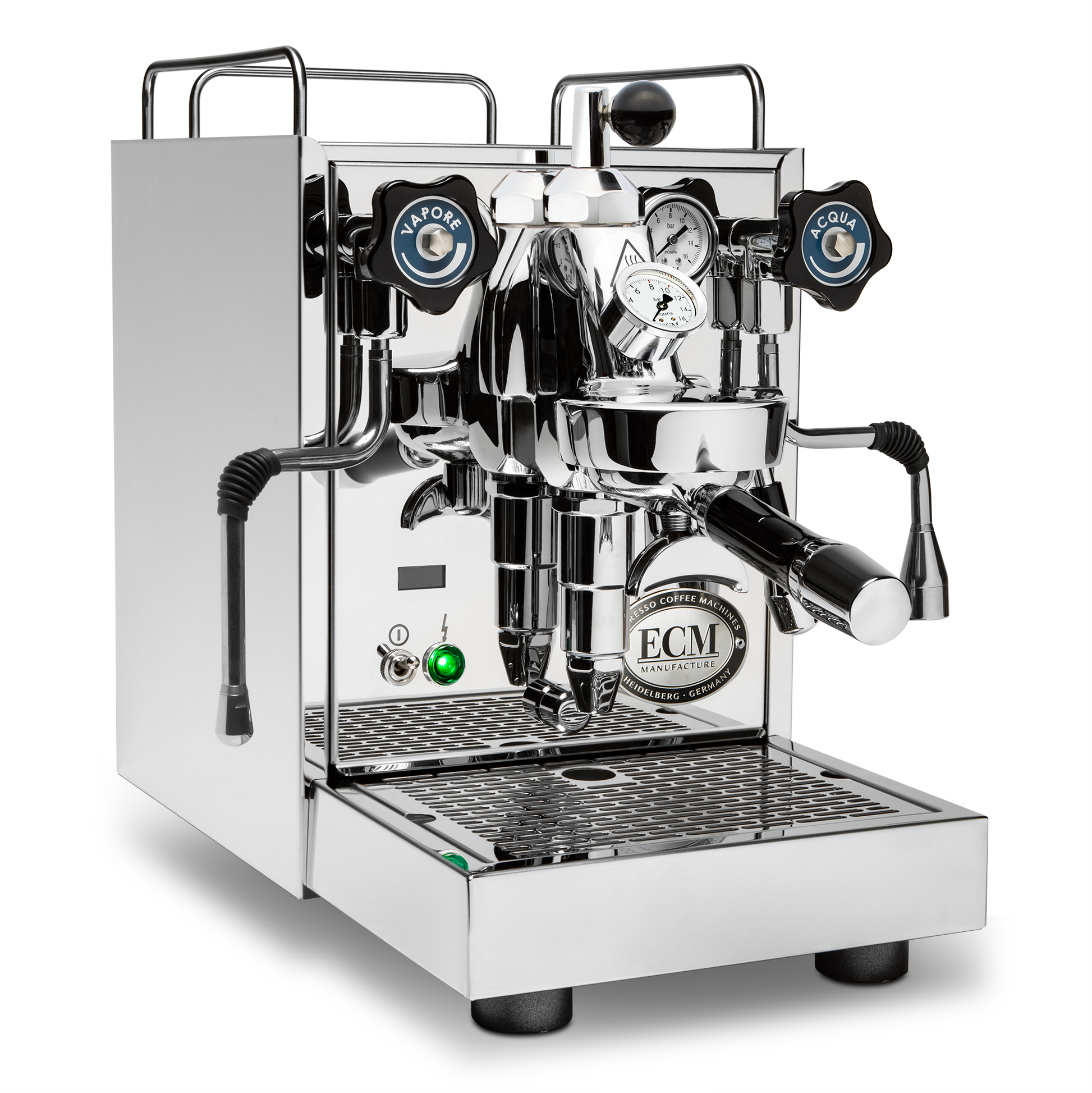

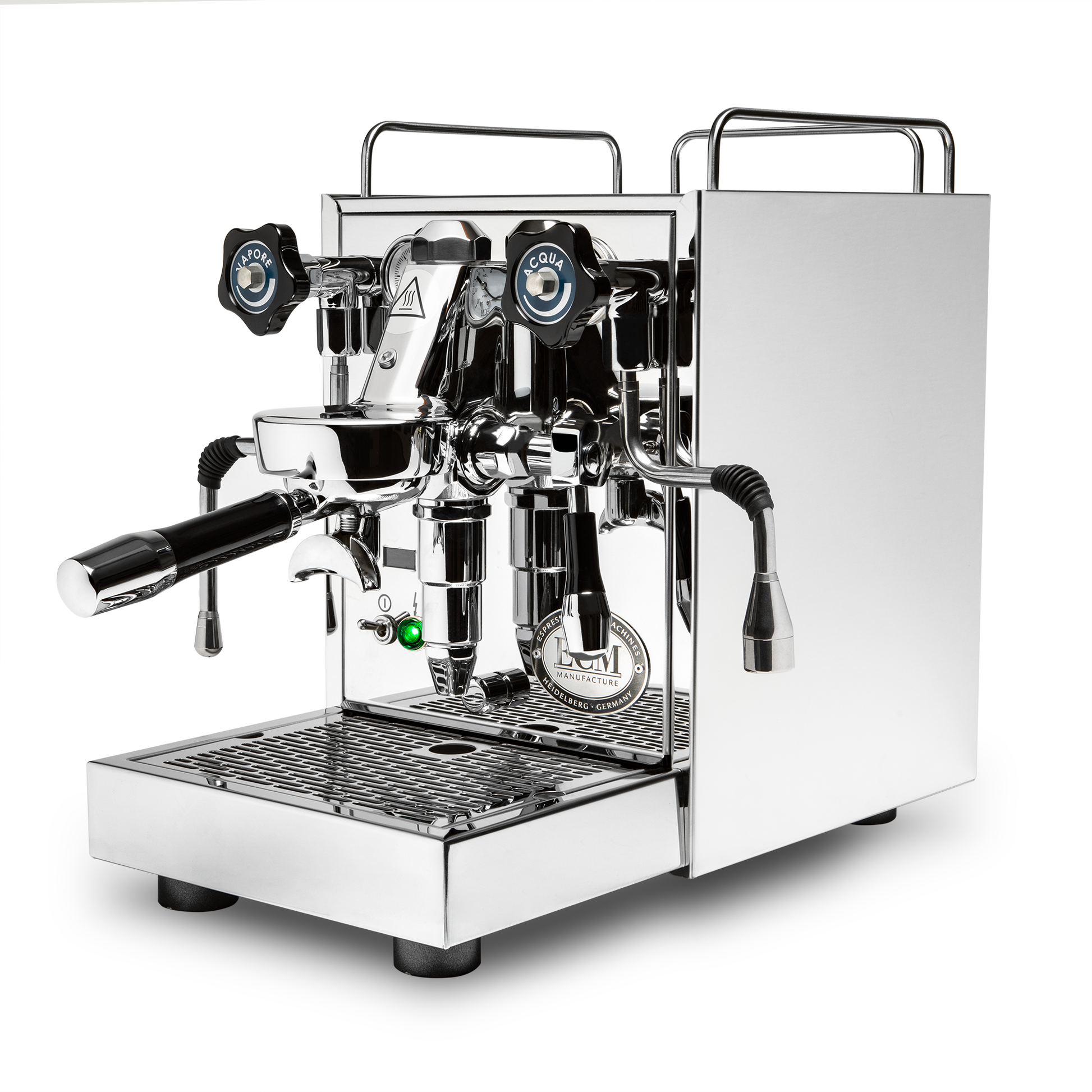

ECM’s Mechanika Slim PID is a compact heat exchanger espresso machine whose narrow build belies the sizable 1.9L stainless steel boiler housed within. As its name suggests, boiler temperature is controlled by a PID switch that can be used to select between one of three preset temperatures. For even greater precision and ease of use, ECM has added an LED screen which functions as a shot timer when the brew lever is engaged.
In spite of its size, the Mechanika Slim PID is a heat exchanger espresso machine and is fully capable of brewing espresso and frothing milk simultaneously. The PID switch plays a part both in temperature regulation and selection and is used to enable other functions such as eco mode and pre-infusion. The three positions correspond to 248°F, 255°F and 262°F and allow users to quickly boost boiler temperature when in need of some extra steam power.

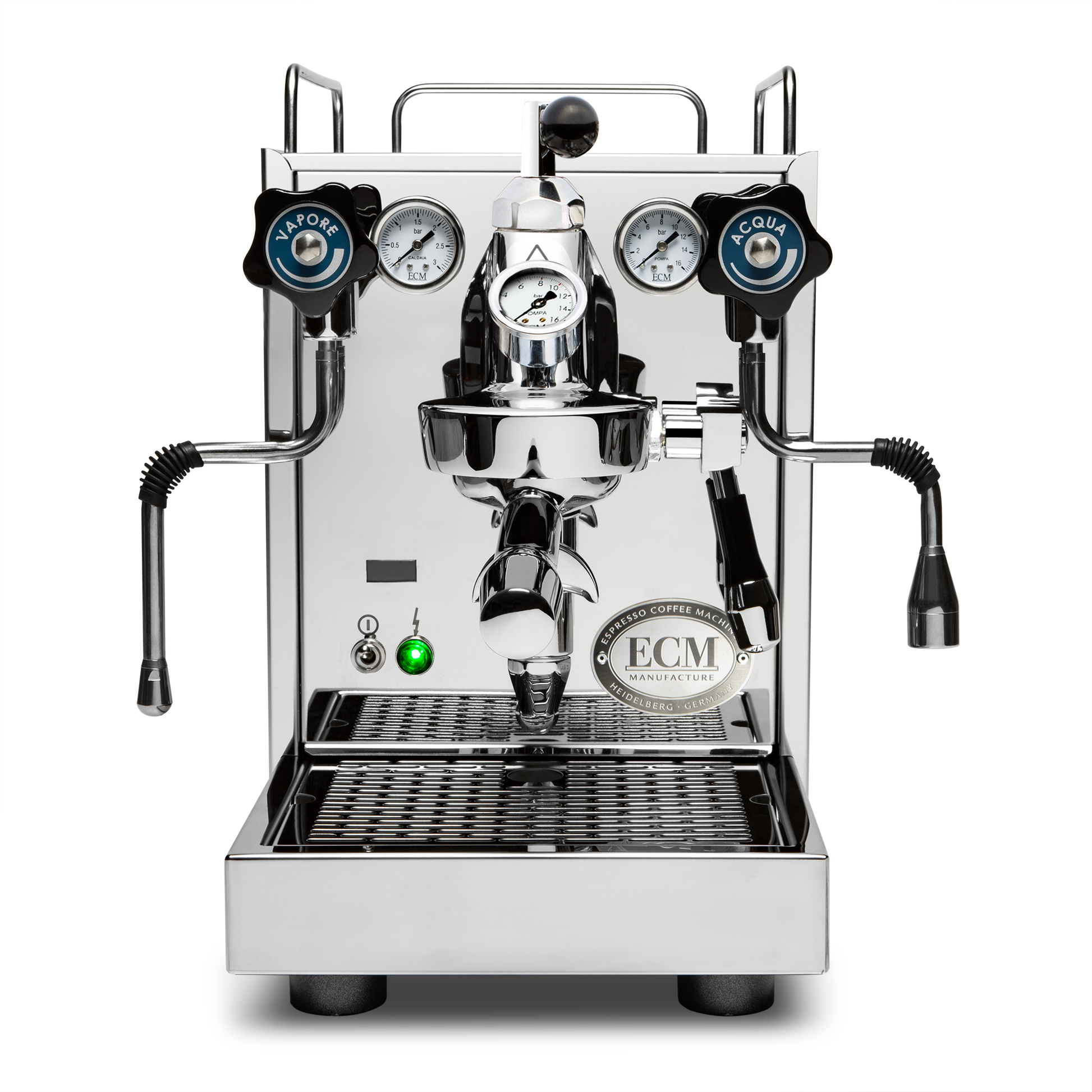

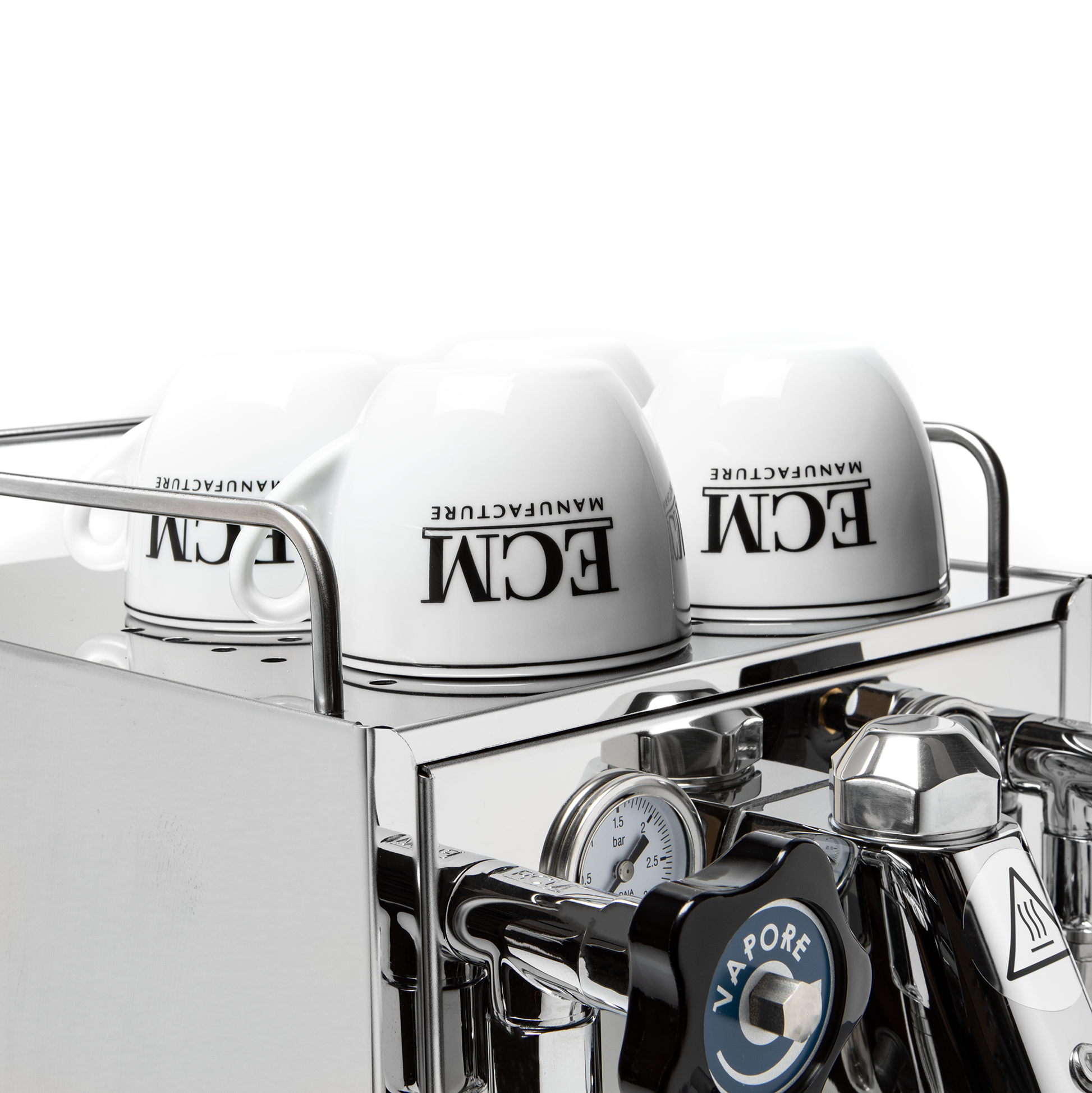

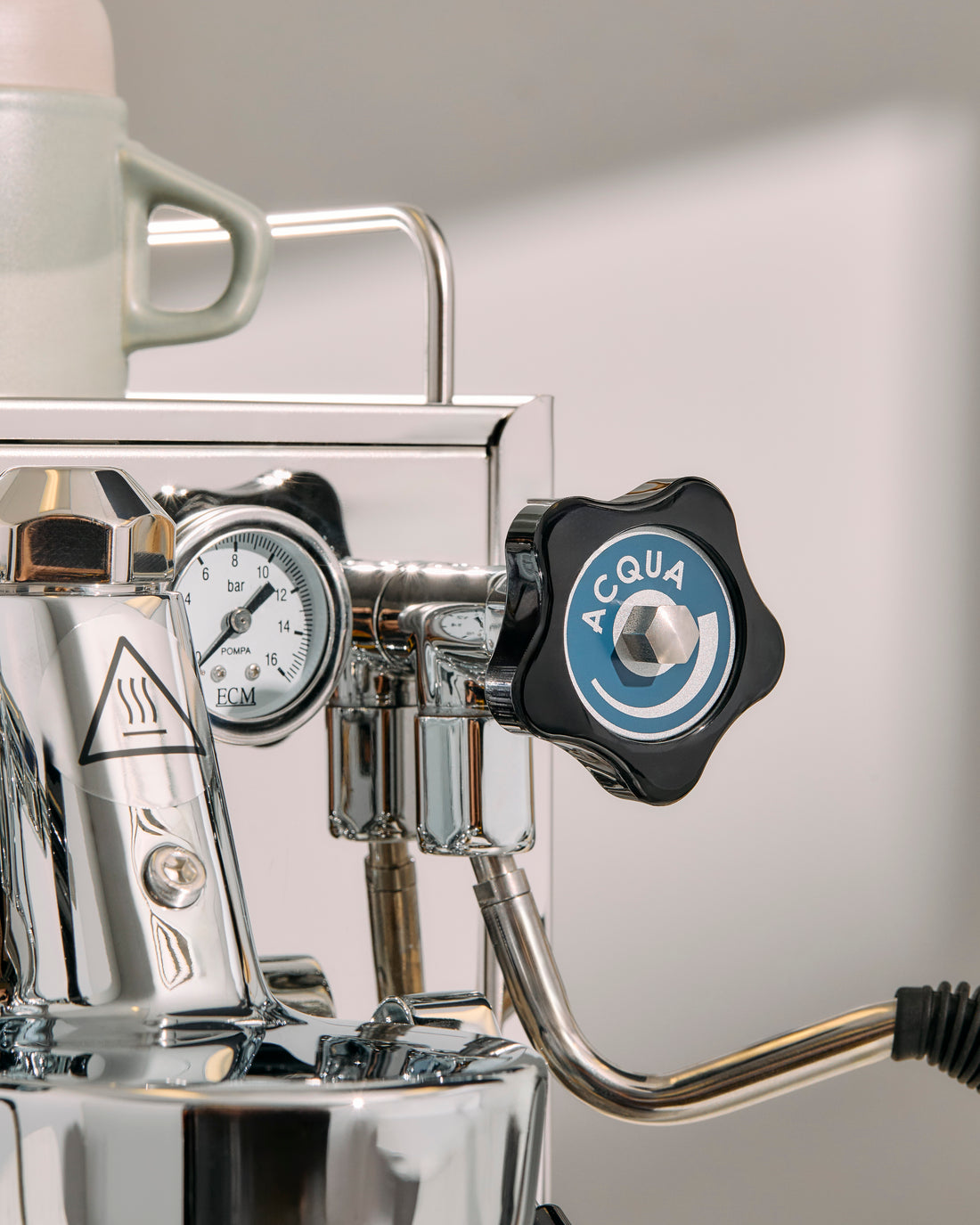

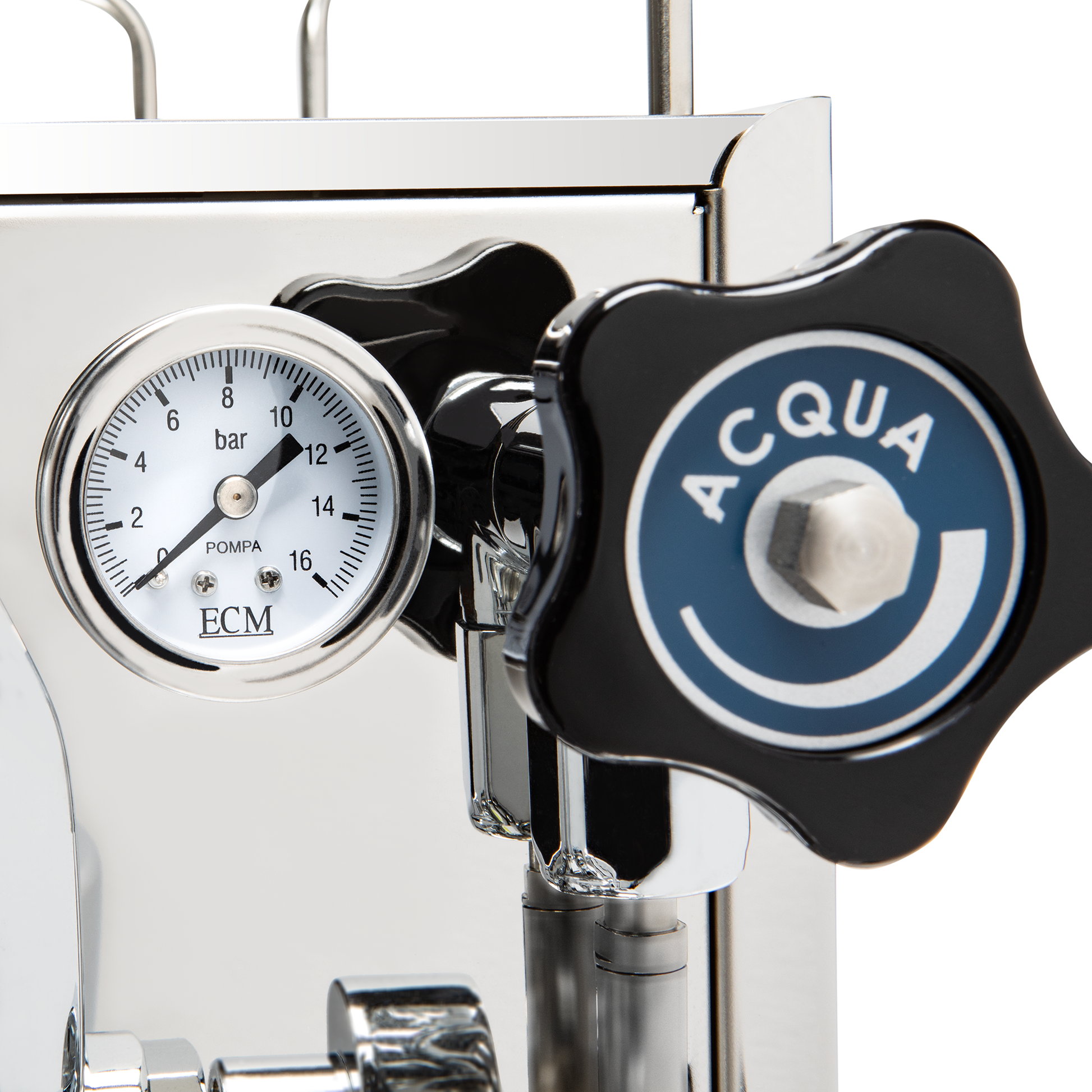

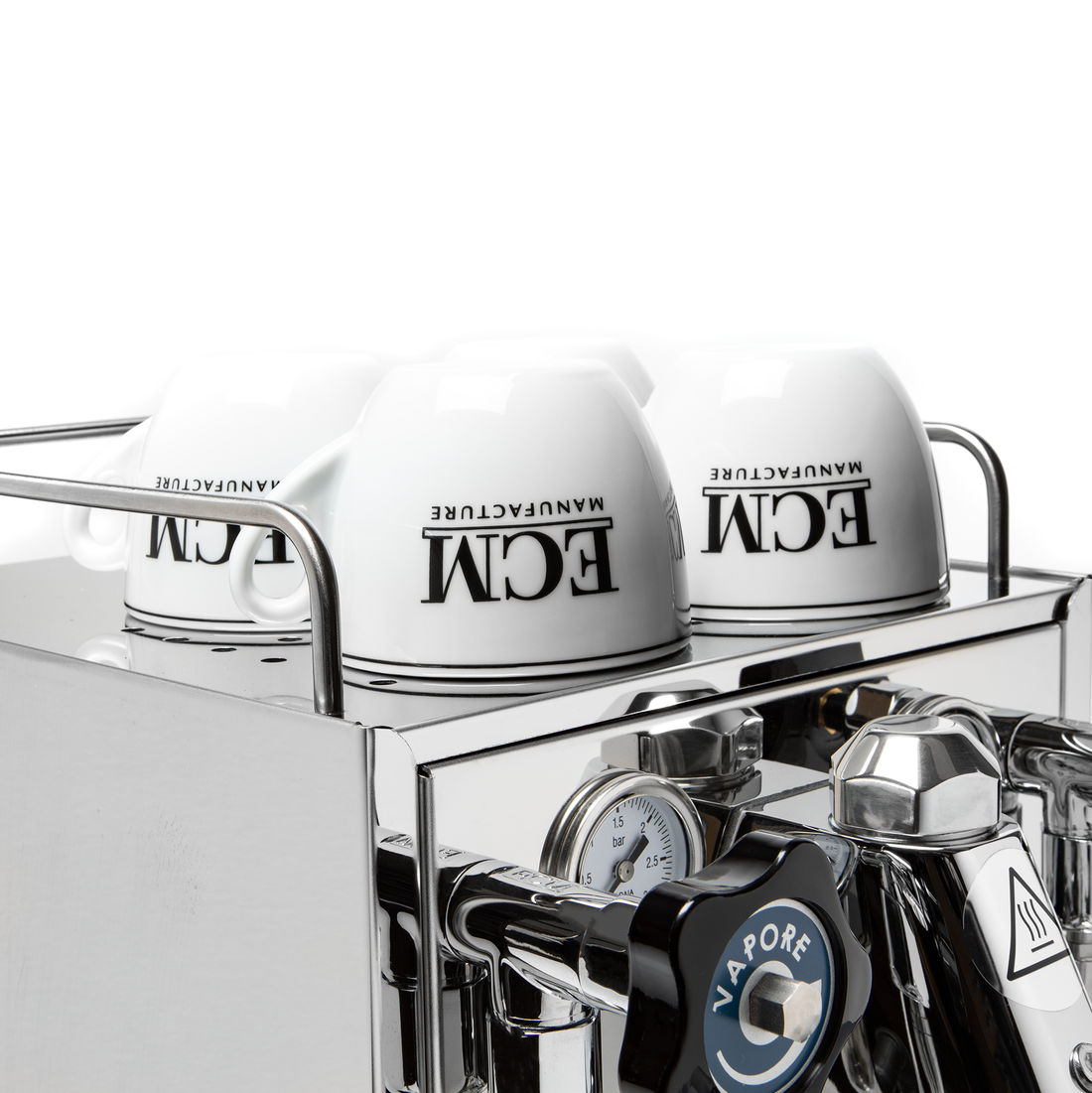

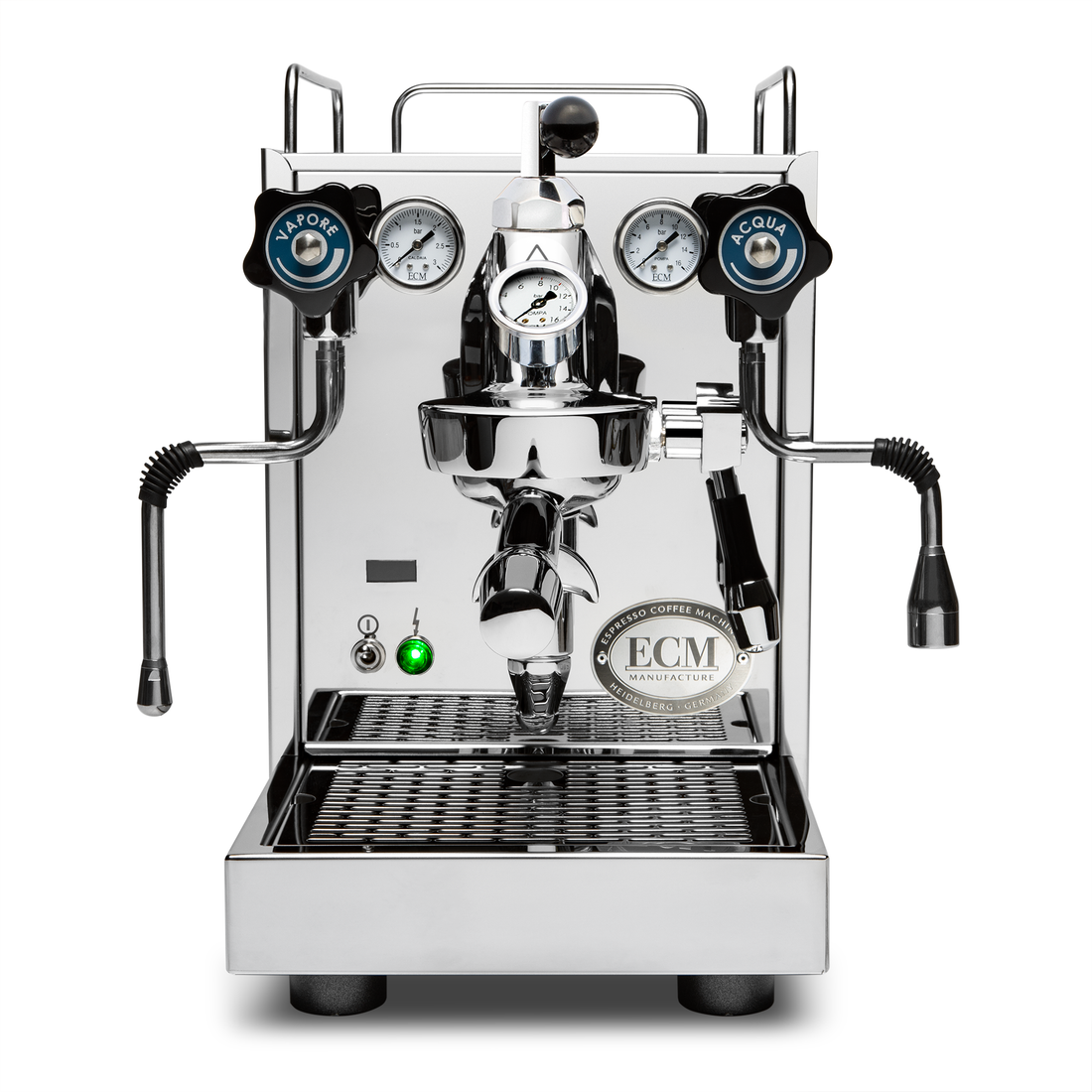

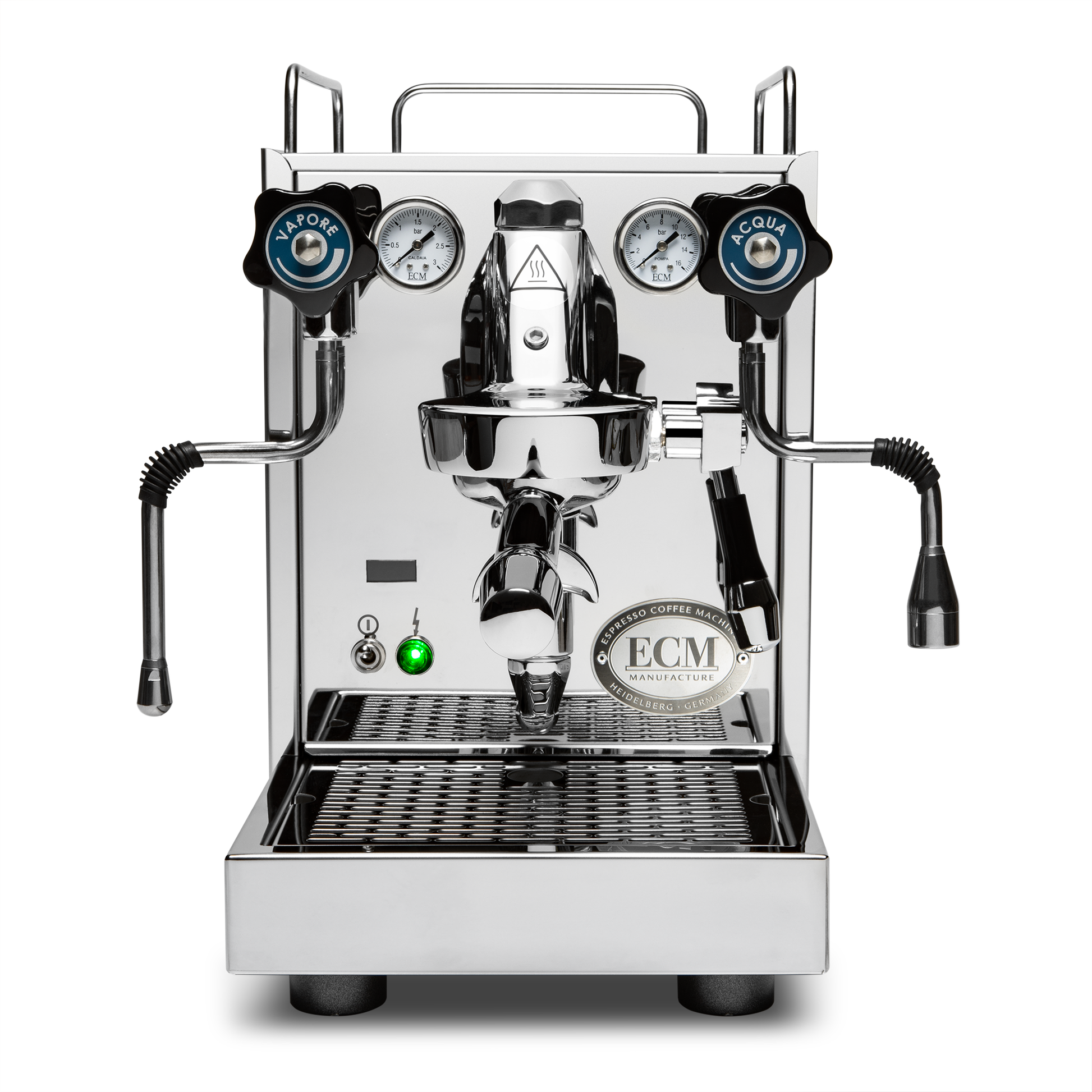

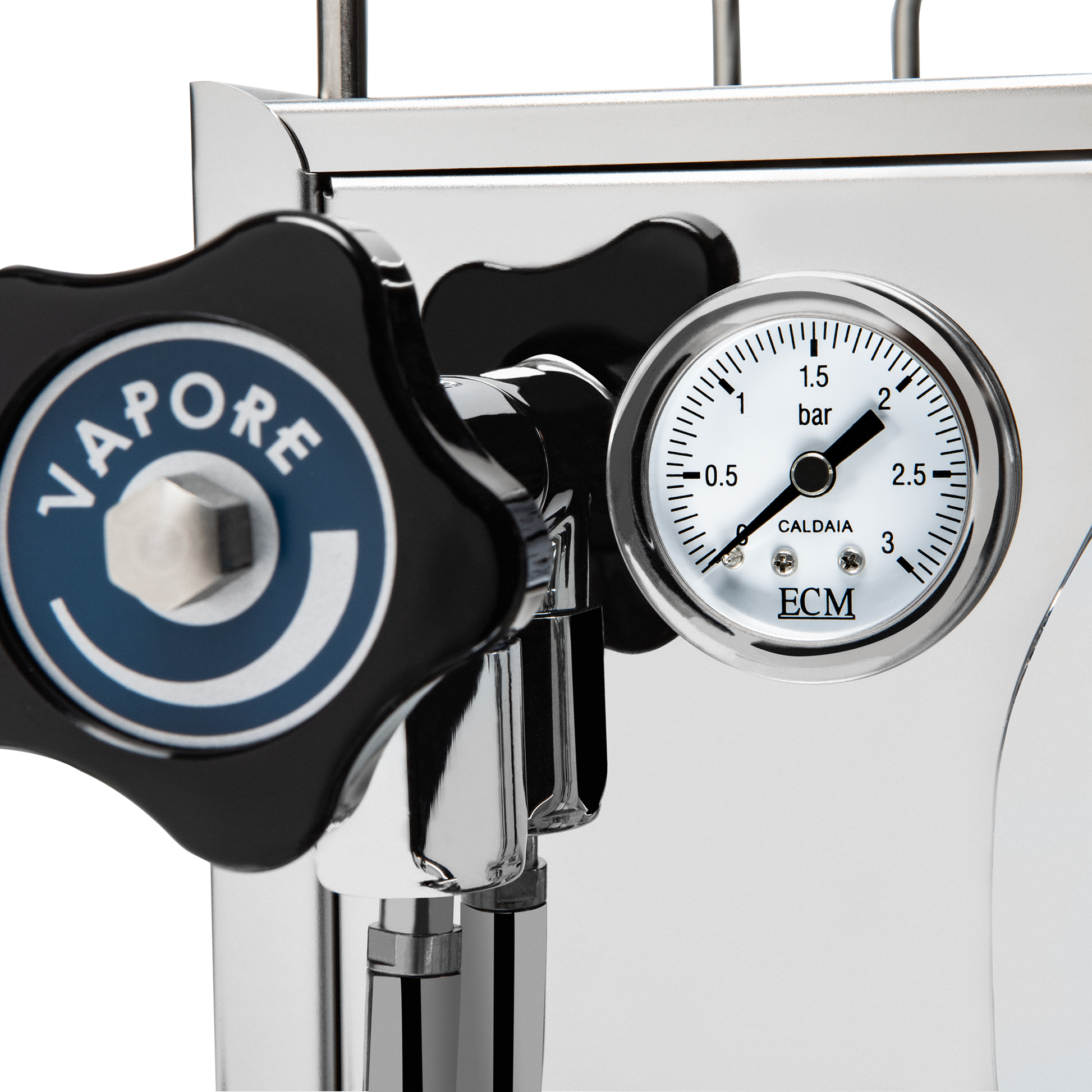

The Mechanika Slim PID is housed in polished stainless steel, with anthracite coated legs and blue steam and hot water valve discs complementing its austere design. Brew and steam pressure are each monitored with a dedicated gauge to the left and right of the E61 group and the cup tray features a set of railings to both house cups and for easy removal to access the water reservoir and the externally adjustable OPV.

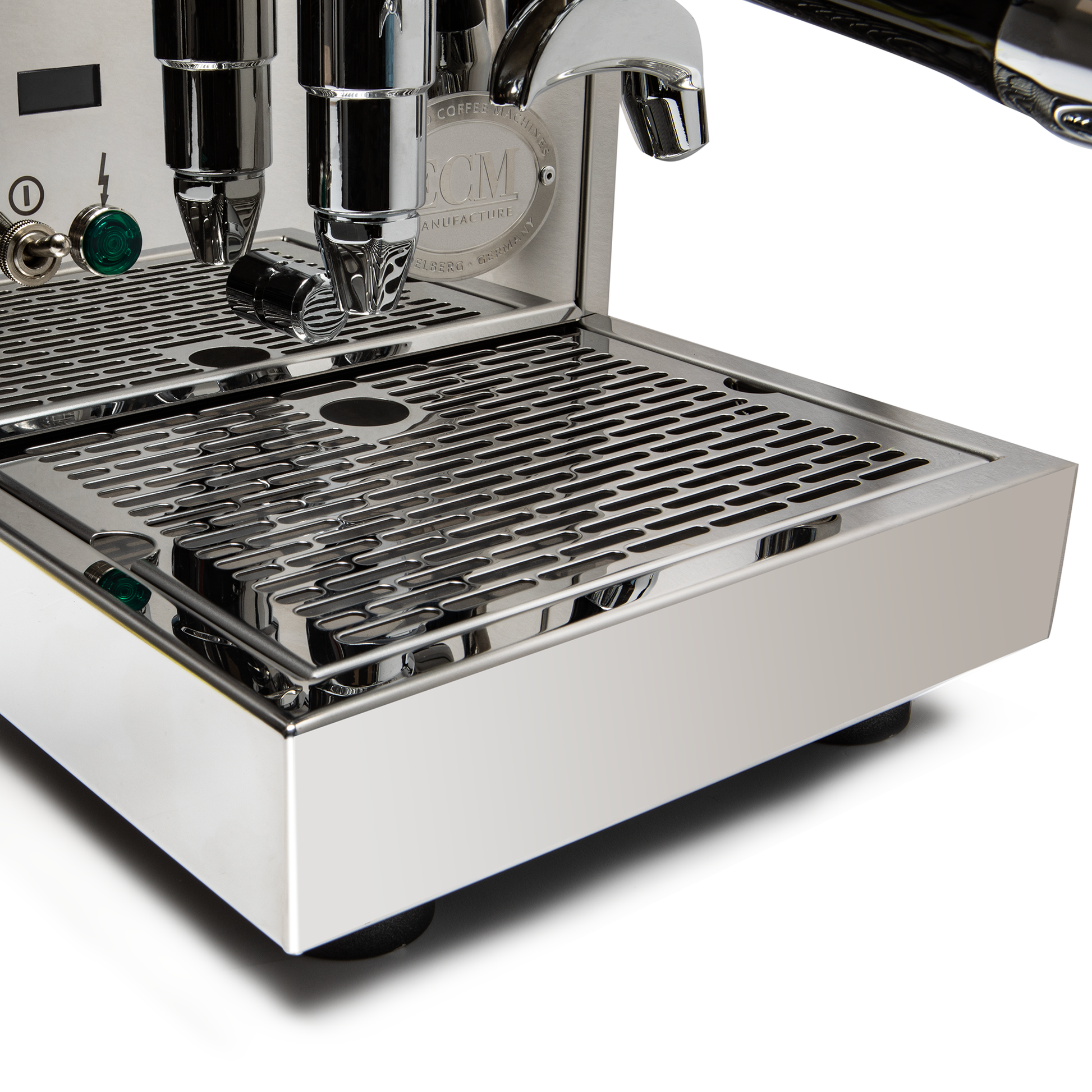

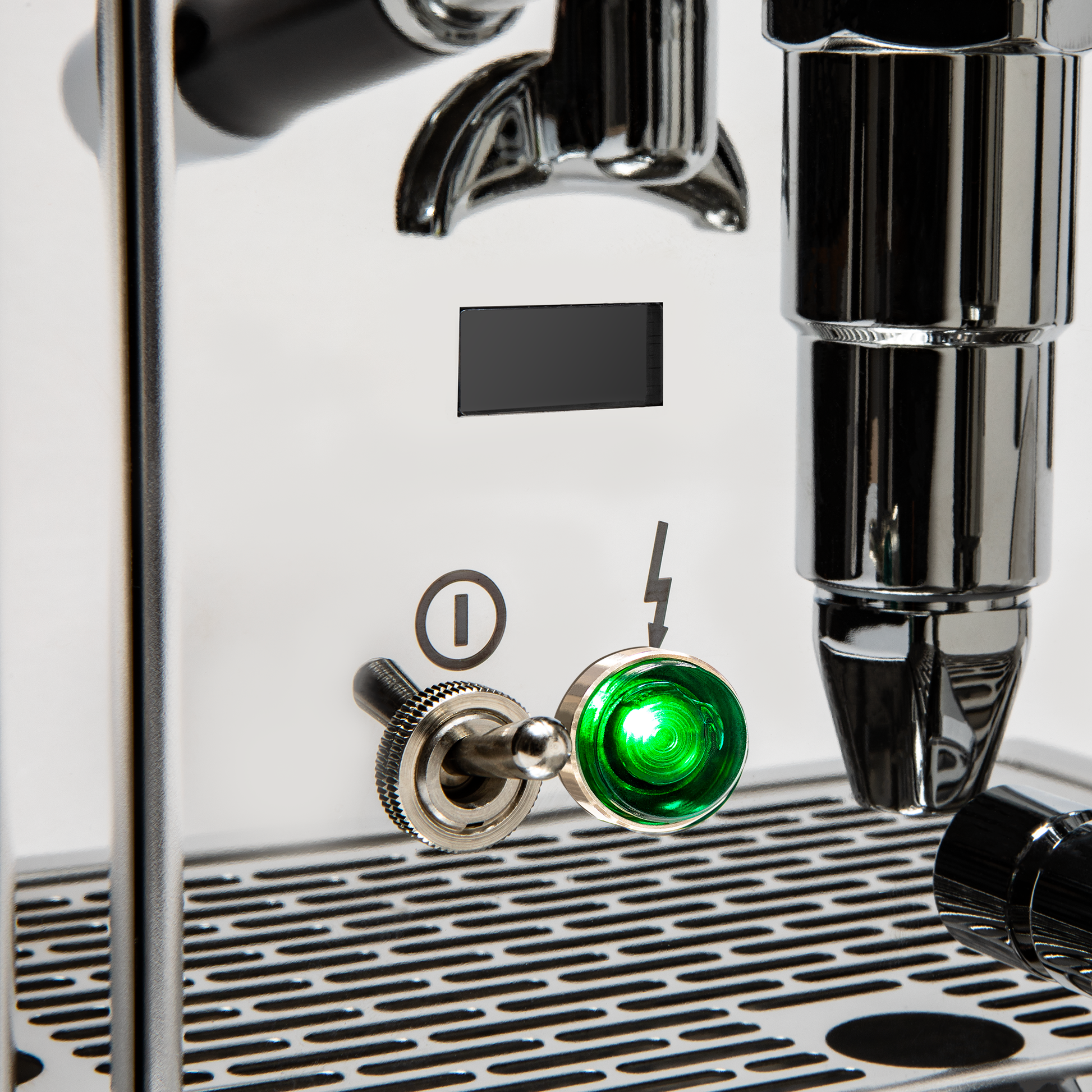

To the bottom left of the E61, the newly added LED display is located above the power switch. By default, the display will remain blank when the machine is turned on and will only illuminate to confirm menu and temperature changes, alert you when the machine is heating up or the water tank is low, and to display a shot timer when the brew lever is engaged. Additional features include an optional pre-infusion mode to briefly wet coffee before extraction and an eco mode to power down the boiler after a set period of inactivity.
At its core the Mechanika Slim PID is a simple yet powerful, compact and beautiful espresso machine. While the world of home espresso machines has gotten fairly complicated, this machine keeps things simple. The PID switch offers just enough control to accommodate the need for stable brew temps while allowing users to crank up steam pressure when the situation calls for it. If you enjoy daily milk drinks and more traditional espresso blends, this is the machine for you.
Located on the right side of the bottom of the machine, the all-new three-position switch allows for easy adjustment between three preset boiler temperatures, as well as the ability to turn pre-infusion and ECO mode on or off.
The compact LED display functions as a shot timer whenever the machine is brewing. Is also displays alerts and will show the selected temperature when using the PID switch to change between settings.
The Mechanika VI Slim is equipped with a 1400W stainless steel boiler with a capacity of 1.9L. As a heat exchanger machine, you can expect to brew and steam without waiting, or even at the same time.
With a width of 9.8 inches, a depth of 17.5 inches, and a height of 15.6 inches, the Mechanika Slim PID doesn't ask for much space at all, fitting comfortably beneath standard kitchen cabinetry and leaving plenty of room on the counter.
| Property | Value |
|---|---|
| SKU | ECMMECHSLIMPID |
| App Connectivity | No |
| Boiler Configuration | Heat Exchanger |
| Number of Boilers | 1 |
| Boiler Features | Brew & Steam Simultaneously |
| Brew Boiler Auto-Fill | Yes |
| Brew Boiler Heater Location | Internal |
| Brew Boiler Insulation | Yes |
| Brew Boiler Material | Stainless Steel |
| Brew Boiler Orientation | Vertical |
| Three-Way Valve | Manual |
| Back Flush Capable | Yes |
| Brew Group Material | Chrome Plated Brass |
| Brew Group Size (mm) | 58 mm |
| Brew Group Type | E61 |
| Brew Boiler Wattage | 1400 |
| Recommended Application | Home / Residential |
| NSF Certified | No |
| Display Type | Indicator Lights |
| Controls and Additional Features | Pressure Gauge(s) |
| Pressure Gauges | Brew Circuit,Steam Boiler |
| Type of Controls | Lever, Temperature Switch |
| Cup Warmer Material | Stainless Steel |
| Cup Warmer Size (L-in x W-in) | 10.5 x 9.5 |
| Cup Warmer | Passively Heated |
| Drain Line Adaptable (Plumbable) | No |
| Drip Tray Capacity (oz) | 35 fl-oz |
| Drip Tray Material | Stainless Steel |
| Removable Drip Tray | Yes |
| Portafilter Baskets Included | Double, Single |
| Housing Material | Stainless Steel |
| Recommended Water Filter | BWT Bestsave M Anti Scale Filter |
| Capacity (Oz) | 74.4 fl-oz |
| Depth (Inches) | 17.5 |
| Property | Value |
|---|---|
| Height (Inches) | 15.5 |
| Weight (Lbs) | 55.5 |
| Width (Inches) | 9.8 |
| Bottomless Portafilter Available | Yes |
| Filter Diameter (mm) | 58 mm |
| Portafilter Handle Material | Bakelite Plastic |
| Portafilter Material | Chrome Plated Brass |
| Number of Portafilters Included | 2 |
| Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
| Portafilter Type | Commercial Style |
| Portafilter Weight (lbs) | 2 lbs |
| Adjustable Brew Pressure | Yes |
| Pump Pressure (Max. Bar) | 15 Bar |
| Pump Type | Vibration |
| Warranty Service Provider Email | support@wholelattelove.com |
| Warranty Service Provider | Whole Latte Love |
| Warranty Service Provider Phone Number | 585-924-7170 |
| Manufacturers Warranty Period | 3-Year Parts and Labor Warranty |
| Amps | 11.6 A |
| Volt | 110V-120V (US) |
| Power Cord Length (inches) | 50 in |
| Power Cord Storage | No |
| Steam Boiler Auto-Fill | Yes |
| Steam Wand Features | No-Burn, Swappable Steam Tips |
| Steam Tip Hole Count | 2 |
| Steam Wand Material | Stainless Steel |
| Steam Wand Movement Type | Fully Articulated |
| Steam Wand | Commercial |
| Water Reservoir Access Location | Top |
| Water Reservoir Capacity | 101.4 fl-oz |
| Water Reservoir Features | Removable |
| Water Reservoir Material | Plastic |
| Water Source | Built-In Reservoir |
