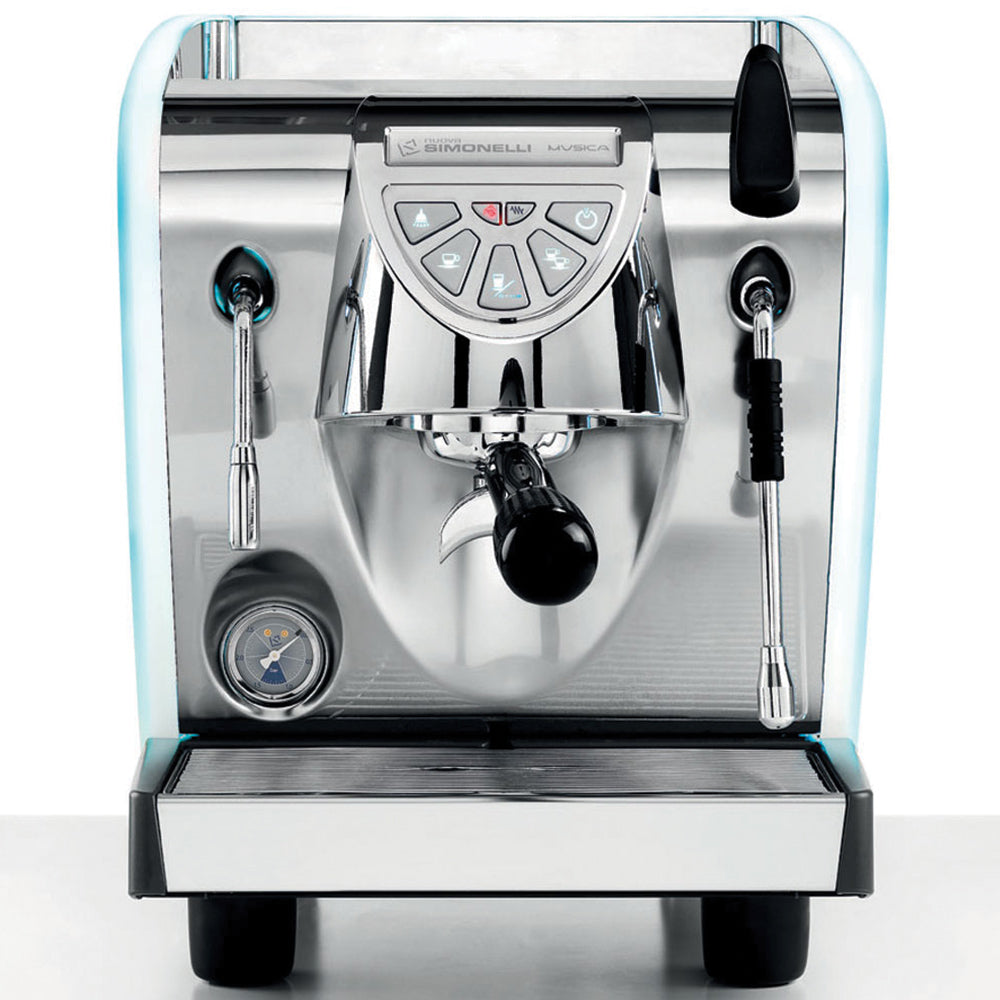

Nuova Simonelli Musica Lux Direct Connect

By Nuova Simonelli

The Nuova Simonelli Direct Connect takes style to the next level with LED lined curves. This prosumer espresso machine features a 2.5 L copper boiler, plumbed operation, programmable automated brewing, a precise 4-hole latte art steam tip, and an NSF rating.

Looking for something?

It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.

Need any help? Talk to one of our experts: 585-924-7170

View full details

Owning the Nuova Simonelli Musica Lux Direct Connect

The Musica Lux lights up the room. Nuova Simonelli’s hottest machine is the Musica. This Lux has everything: LED lined curves, backlit automatic brew buttons, commercial-grade components, and an NSF rating. Nuova Simonelli, known for their championship commercial machines, packs innovations a gogo into the Musica Lux. Available in an exclusively plumbable Direct Connect, or a 3 L reservoir-operated Pour Over version, the Musica Lux is versatile and easily rises to the occasion in a bustling cafe or home kitchen. It’s a heat exchange machine, so its 2.5 L boiler is capable of brewing and steaming simultaneously, and it features many of the same great commercial components as the Oscar II, making some improvements along the way. For example, the Musica Lux improves on the steam wand, swapping out the 4-hole commercial tip on the Oscar II for a latte art one; plus, said steam wand is operated by a switch rather than a knob, so you can immediately steam at full power or throttle the switch for additional precision. On all of their machines, Nuova Simonelli incorporates their own E61 style group head into the Musica Lux, which syphons hot water through the brew circuit to aid in temperature stability throughout. In combination with the heat retentive copper boiler and tubing, the Musica Lux makes for a highly temp stable machine. The best part, in our opinion, is the programmable control panel, which allows you to turn pre-infusion on or off, press a button to dispense a single or double shot or a set amount of hot water for an Americano, cocoa, or hot tea, plus, new to the Lux, you can also adjust the brightness of the integrated LEDs. We think we may have found the true juke box hero, and she brews a mean espresso.

Just like on the rest of its machines, Nuova Simonelli designed the Musica Lux to be safety conscious, self sufficient, and smart. Measures are in place to ensure the machine powers off after 90 seconds of consecutive brewing to avoid overheating; the Musica Lux alerts you when the boiler is actively heating to brew temperature in the boiler; and its steam wand is outfitted with an anti-siphon valve, which prevents milk from being sucked into the boiler. A new addition to the Musica and Musica Lux is its accessible pressurestat, which can be adjusted from the outside of the machine in order to affect the boiler temperature. Changes are reflected immediately in the newly incorporated pressure gauge. Because of this commitment to quality components and design, the Musica Lux is backed by an NSF certification and can slide onto any cafe countertop ready to perform. We do recommend high volume cafes consider one of Nuova Simonelli’s commercial offerings, however. Take care of the Musica’s maintenance and she’ll take care of your brews shot after shot, year after year. Take a look at the Oscar II for a bit smaller of a machine with a lot of the same great features and all the quality of the Musica; or, the standard Musica offers all the same great functionality with classy black stripes in place of LEDs.

You may also like

  • Programmable Timed Brewing

    The Musica Lux is equipped with optional pre-infusion, single and double shot brew buttons that can be programmed by time, and, as an added bonus, a hot water button that can also be programmed to dispense by time. Pressing any of the buttons a second time while brewing will cut the brew cycle for more manual control over the espresso extraction or hot water amount.

    Feature Grid Default Image 1
  • Commercial Push Steam Lever

    The Musica Lux's commercial push steam lever allows you to immediately open and close the steam valve rather than turn a knob. For more precise control, you can also lightly push on the lever to throttle steam manually. As an added protection, the Musica Lux is equipped with an anti-siphon valve that prevents milk from being sucked into the boiler via the steam wand.

    Feature Grid Default Image 2
  • Heat Exchange Boiler

    The Musica Lux is outfitted with a 2.5 liter copper heat exchange boiler. Copper is known for its thermal conductivity and heat retention, making it an excellent choice as a boiler material. For rapid preparation of drinks, heat exchangers allow you to brew and steam simultaneously.

    Feature Grid Default Image 3
  • Thermo-Compensated Group

    Temperature stability on the Musica Lux is maintained at the group head by a thermosiphon created within the heat exchange circuit. The constant circulation of hot water from the circuit prevents temperature loss when brew water reaches the portafilter.

    Feature Grid Default Image 4

On The Blog

  • bannerimage

    Nuova Simonelli: Oscar and Musica

    We’ve been carrying the Nuova Simonelli Oscar and Nuova Simonelli Musica for a few months at Whole Latte Love and it's time to give these powerful machines some recognition. For starters, both machines are NSF certified for commercial use. If you ask me, it's easy to see why both the...

    Read More About Nuova Simonelli: Oscar...

    1 of 1 in Reviews

    1 of 2
  • bannerimage

    Best Espresso Machines of 2024

    If you’re in the market for a new espresso machine, Whole Latte Love is here to help. We have a multitude of options to choose from, but we know it can be hard to find the best espresso machine to fit your exact needs. Read on to learn more about...

    Read More About Best Espresso Machines...

    1 of 1 in Articles

    2 of 2


Property Value
Number of Boilers 1
Brew Boiler Material Copper
Brew Boiler Type Heat Exchanger
Brew Boiler Volume (Oz) 84
Capsule or Pod Friendly No
Brew Group Type E61
Recommended Application Home / Residential,Commercial
Display Type Indicator Lights
Controls and Additional Features Cup Volume Control,Pre-Infusion,Pressure Gauge(s),Programmable Brewing
Pressure Gauges Brew Circuit
Type of Controls Push Button
Cup Warmer Passively Heated
Drip Tray Cover Material Stainless Steel
Drip Tray Material Plastic
Portafilter Baskets Included Single,Double
Housing Color Stainless Steel
Housing Material Stainless Steel / Plastic
Recommended Water Filter No Filter Required
Depth (Inches) 15.75
Height (Inches) 17
Property Value
Weight (Lbs) 44.1
Width (Inches) 12.6
Filter Diameter (mm) 58
Number of Portafilters Included 2
Ground, E.S.E., Pod and Capsule Compatibility Ground Coffee
Portafilter Type Commercial Style
Adjustable Brew Pressure Yes
Pump Pressure (Max. Bar) 15
Pump Type Vibration Pump
Warranty Service Provider Nuova Simonelli
Warranty Service Provider Phone Number 1-360-366-2226
Manufacturers Warranty Period 2-Year Limited Warranty
Volt 110V-120V (US)
Capsule or Pod Compatibility Not Compatible with Capsules
Steam Tip Hole Count 4
Steam Wand Material Stainless Steel
Steam Wand Movement Type Fully Articulated
Water Reservoir Access Location Top
Water Reservoir Capacity 101
Water Reservoir Material Plastic
Water Source Reservoir and Water Line
