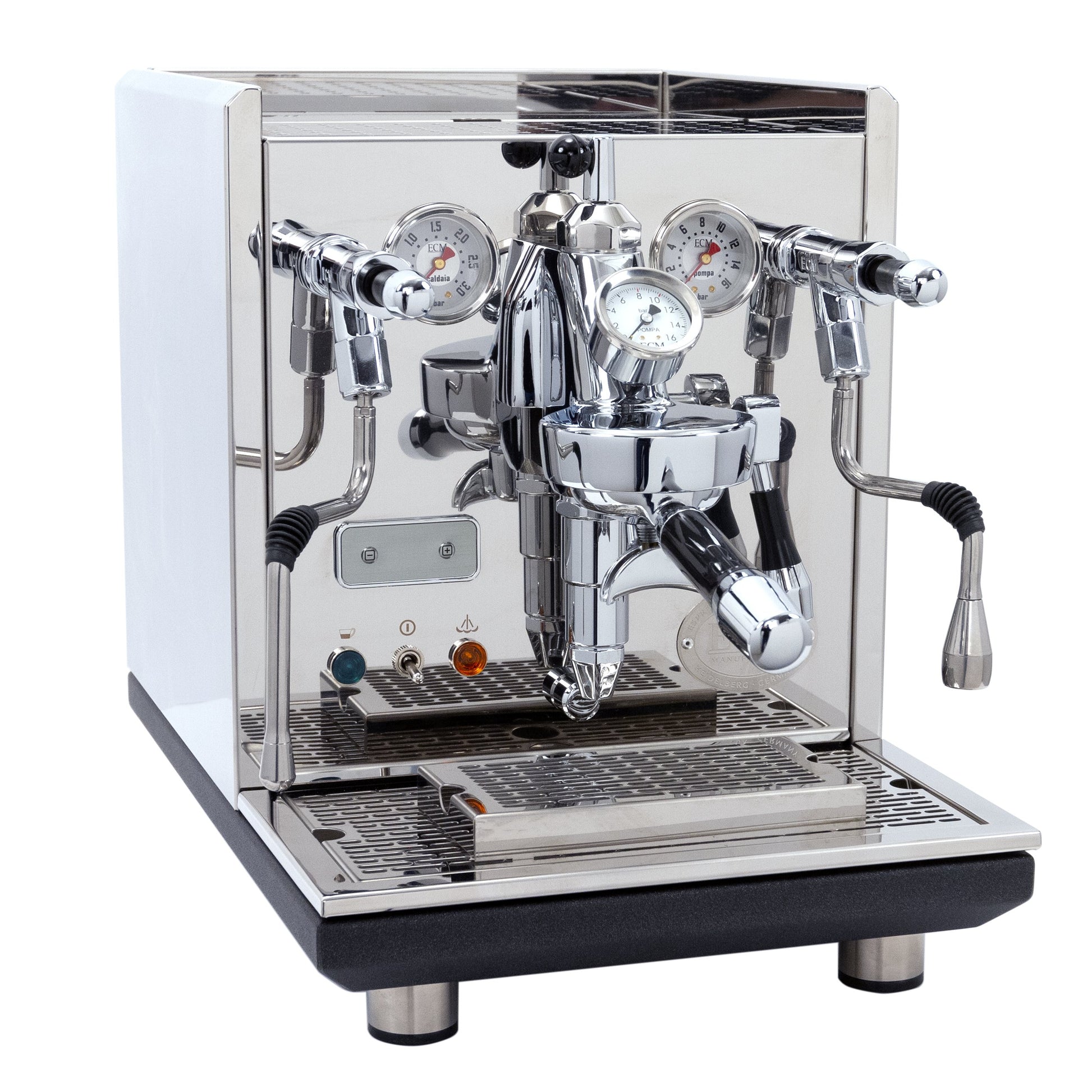

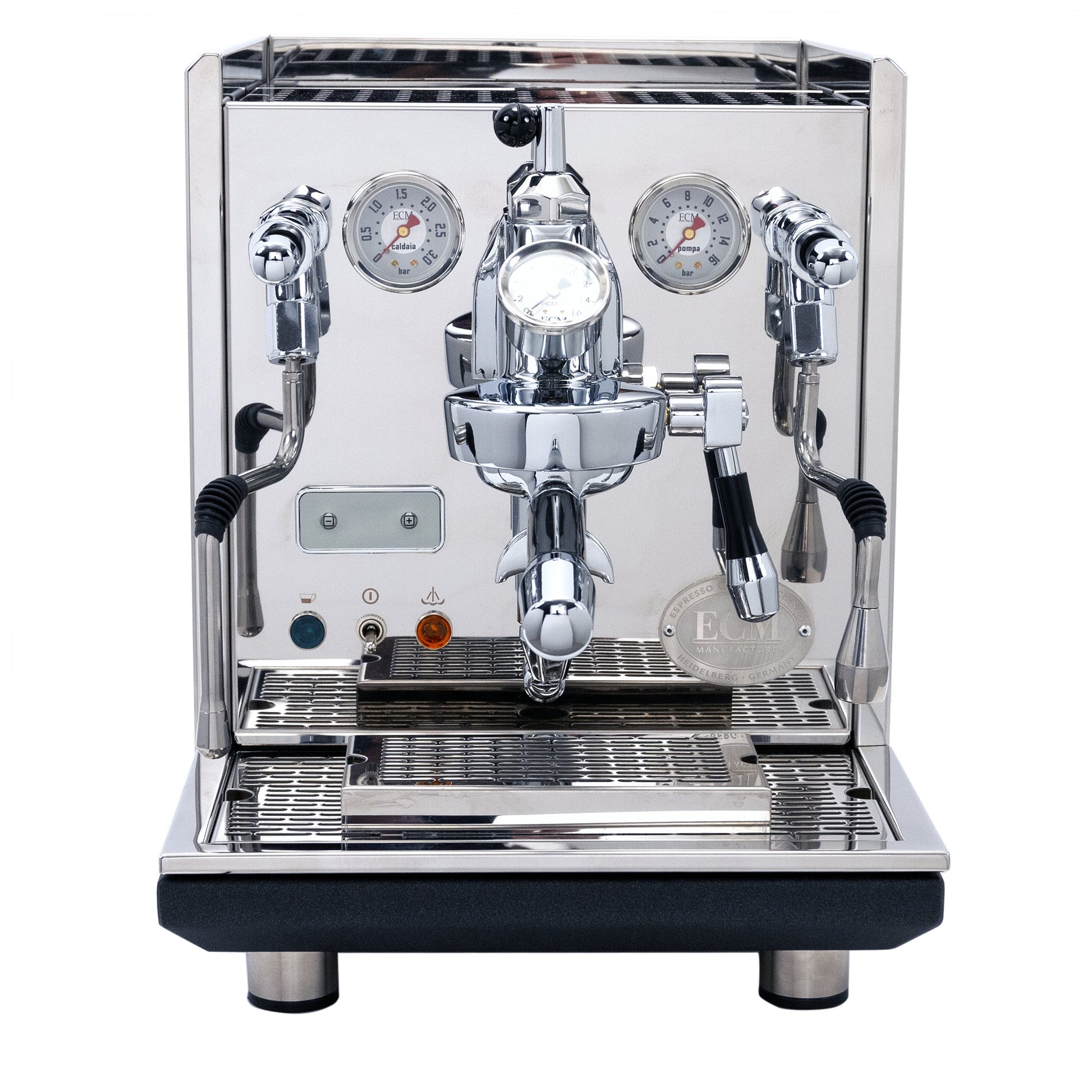

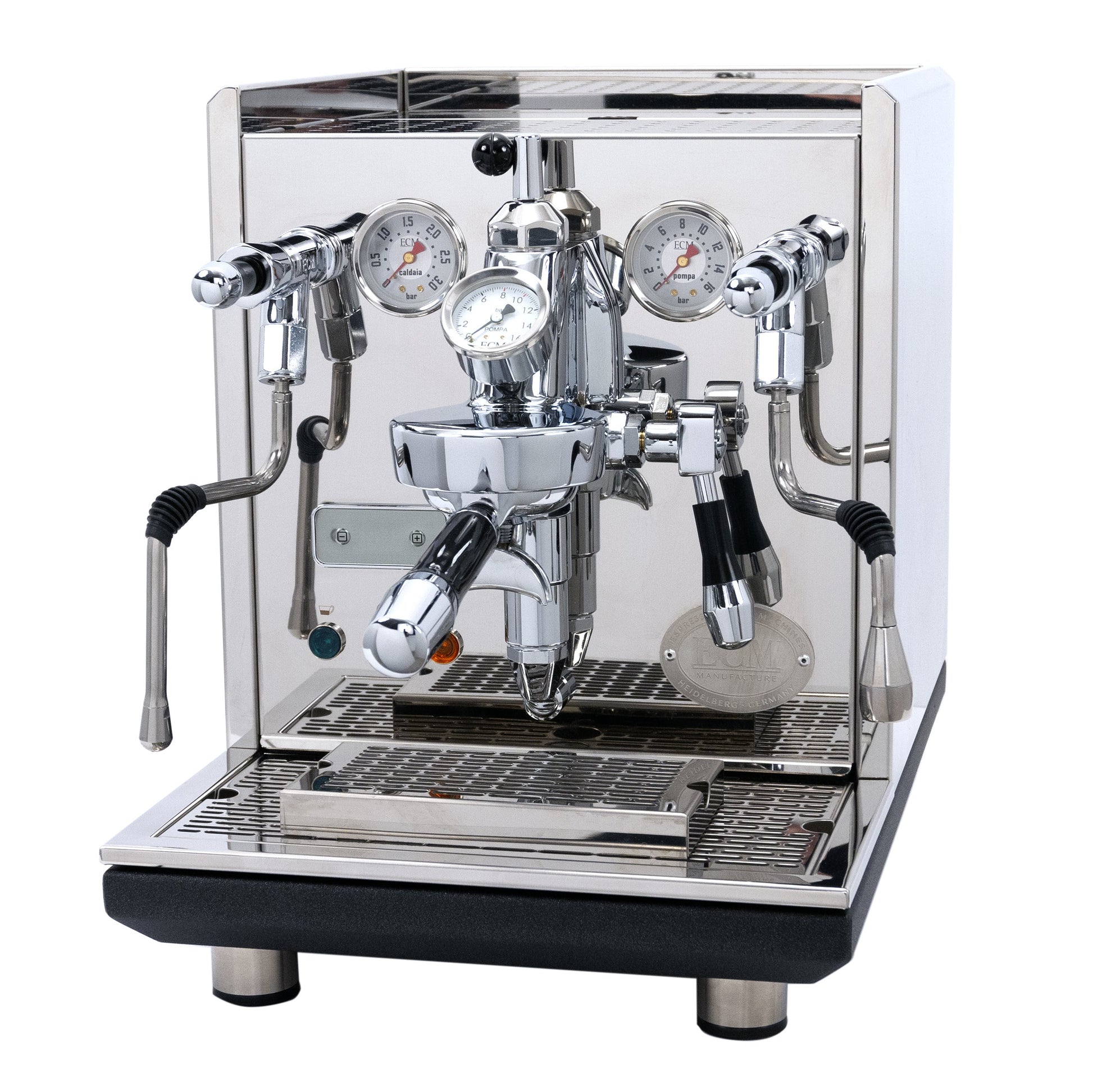

ECM Synchronika with Flow Control Overview
ECM is all about a kind of refinement that beautifies the little things and strengthens an already top-notch machine. We're happy to say the ECM Synchronika has been a credit to their mission of innovation ever since it arrived on the market, and it's only gotten better over the years.
Features and Performance
The upgraded PID and discreet improvements really elevate what you can do with an espresso machine, and the added Flow Control device allows you to adjust the flow of water in your brew group to manually profile your extractions. Now more than ever, you can expect to really unlock the nuances hidden within your coffee, and with 2 bar of steam power at your disposal you can get the most out of your lattes and cappuccinos.
Less obvious advantages can be found in the iconic E61 brew group, which ECM has updated with stainless-steel internal components, as well as a single top cap for a cleaner aesthetic that other machines lack. These stainless-steel internals add much greater durability and resistance to calcium build-up for more straightforward maintenance, streamlining the experience of owning an espresso machine overall.
When plumbed in, you can take advantage of longer, low-pressure pre-infusion to bring out the more unique flavor notes in specialty coffee. While this isn't unique to the Synchronika, not many machines can do this.
Why You Should Get It
When paired with the proper grinder, the ECM Synchronika has pulled shots for us that compare with some of our best local cafes. The subtleties in technical improvement and ECM’s nuanced innovation shine in the Synchronika, making it one of the best-equipped prosumer machines on the market.
Specifications
Property | Value |
---|---|
SKU | ECMSYNCHDBFC-REF |
App Connectivity | No |
Boiler Configuration | Independent Steam and Brew |
Number of Boilers | 2 |
Boiler Features | Brew & Steam Simultaneously,Rapid Steam |
Brew Boiler Auto-Fill | Yes |
Brew Boiler Heater Location | Internal |
Brew Boiler Insulation | Yes |
Brew Boiler Material | Stainless Steel |
Brew Boiler Orientation | Vertical |
Brew Boiler Volume (Oz) | 25 fl-oz |
Brew Group Features | Adjustable Flow Rate |
Three-Way Valve | Manual |
Back Flush Capable | Yes |
Brew Group Material | Chrome Plated Brass |
Brew Group Size (mm) | 58 mm |
Brew Group Type | E61 |
Brew Boiler Wattage | 1200 |
Recommended Application | Home / Residential |
NSF Certified | No |
Display Type | LEDs |
Controls and Additional Features | Aroma / Flow Control,Brew Temperature Display,Clock / Timer,Low-Water Warning,Power Light,Pre-Infusion,Pressure Gauge(s),Steam Control,Temperature Control |
Pressure Gauges | Brew Circuit,Brew Head,Steam Boiler |
Type of Controls | Lever,PID |
Cup Height (max, inches) | 4 in |
Cup Warmer Material | Stainless Steel |
Cup Warmer Size (L-in x W-in) | 11.5" x 6" |
Cup Warmer | Passively Heated |
Drain Line Adaptable (Plumbable) | Yes |
Drip Tray Capacity (oz) | 45 fl-oz |
Drip Tray Cover Material | Stainless Steel |
Drip Tray Material | Stainless Steel |
Removable Drip Tray | Yes |
Portafilter Baskets Included | Double,Single |
Frame Material | Steel |
Housing Color | Stainless Steel |
Housing Material | Stainless Steel |
Depth (Inches) | 18.7 in |
Height (Inches) | 16.25 in |
Weight (Lbs) | 80.3 lbs |
Width (Inches) | 13.25 in |
Bottomless Portafilter Available | Yes |
Property | Value |
---|---|
Filter Diameter (mm) | 58 mm |
Portafilter Handle Material | Bakelite Plastic,Plastic |
Portafilter Material | Chrome Plated Brass |
Number of Portafilters Included | 2 |
Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
Portafilter Type | Commercial Style |
Portafilter Weight (lbs) | 1.6 lbs |
Portafilter Diameter | 58 mm |
Adjustable Brew Pressure | Yes |
Pump Pressure (Max. Bar) | 15 Bar |
Pump Type | Rotary Pump |
Warranty Service Provider Email | support@wholelattelove.com |
Warranty Service Provider | Whole Latte Love |
Warranty Service Provider Phone Number | 888-411-5282 |
Manufacturers Warranty Period | 1-Year Parts and Labor Warranty |
Amps | 11.6 A |
Volt | 110V-120V (US) |
Watts | 1400 Watt |
Power Cord Length (inches) | 51 in |
Power Cord Storage | No |
Steam Boiler Auto-Fill | Yes |
Steam Boiler Heater Location | Internal |
Steam Boiler Insulation | Yes |
Steam Boiler Material | Stainless Steel |
Steam Boiler Orientation | Vertical |
Steam Boiler Volume (Oz) | 67.62 fl-oz |
Steam Boiler Vacuum Relief Valve | Yes |
Steam Boiler Wattage | 1400 Watt |
Steam Wand Features | Insulated Grip,No-Burn,Swappable Steam Tips |
Height Off Counter (Inches) | 0.25 in |
Steam Tip Hole Count | 2 |
Steam Wand Material | Stainless Steel |
Steam Wand Movement Type | Fully Articulated |
Steam Wand | Commercial Style |
Water Reservoir Access Location | Top |
Water Reservoir Capacity | 101.4 fl-oz |
Water Reservoir Features | BPA-Free,Removable |
Water Reservoir Material | Plastic |
Water Filter Included | No |
Water Source | Reservoir and Water Line |
Maximum Incoming Water Pressure (PSI) | 29 PSI |
